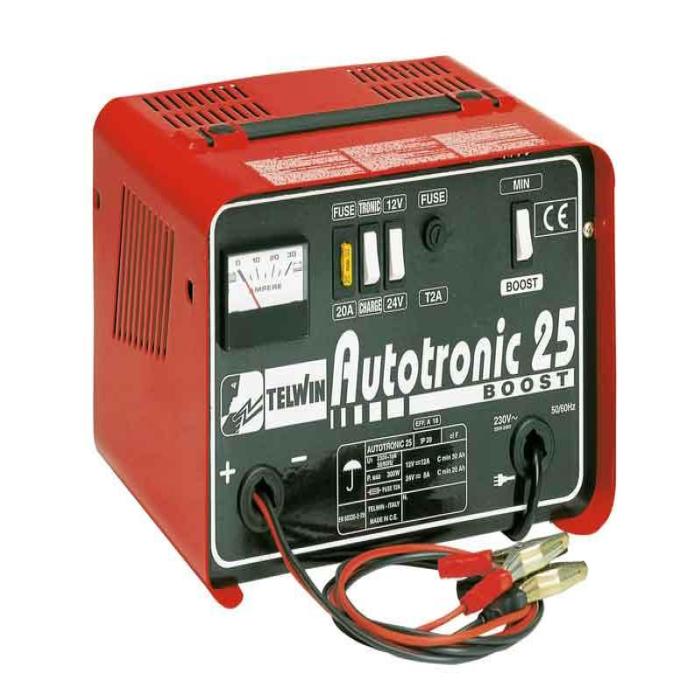

تيلوين شاحن بطارية 807540
Battery charger with electronic control of the charging current, automatic interruption
and restart (TRONIC), for charging lead-acid batteries with 12/24V voltage. Fit with
switches to choose either a normal charge (MIN) or quick charge (BOOST) in the buffer
mode (TRONIC) or drooping characteristic mode (CHARGE). The buffer automatic charge
is adequate for maintenance free, sealed batteries (GEL, AGM/START-STOP) while the
drooping characteristic charge is adequate for free-electrolyte batteries (WET/START-STOP).
Characteristics: choice of output voltage, type of charge, charging mode ?? display of
charging current ?? protection against overloads and polarity reversal.
CODE: 807540
SINGLE PHASE MAINS VOLTAGE: 230 V
MAINS FREQUENCY: 50 / 60 Hz
CHARGING ABSORBED POWER: 300 W
CHARGING VOLTAGE: 12 / 24 V
EFFECTIVE CHARGING CURRENT: 18 / 12 A
RATED CHARGE CURR. EN60335-2-29: 12 / 8 A
MIN. RATED REFERENCE CAPACITY: 30 / 20 Ah
MAX RATED REFERENCE CAPACITY: 225 / 180 Ah
ADJUSTMENT POSITIONS: 4
DIMENSIONS(L,W,H): 225X290X205 mm
Weight: 7.2 kg
| Code | 92-09-025 |
|---|---|
| ID | 2184431 |
