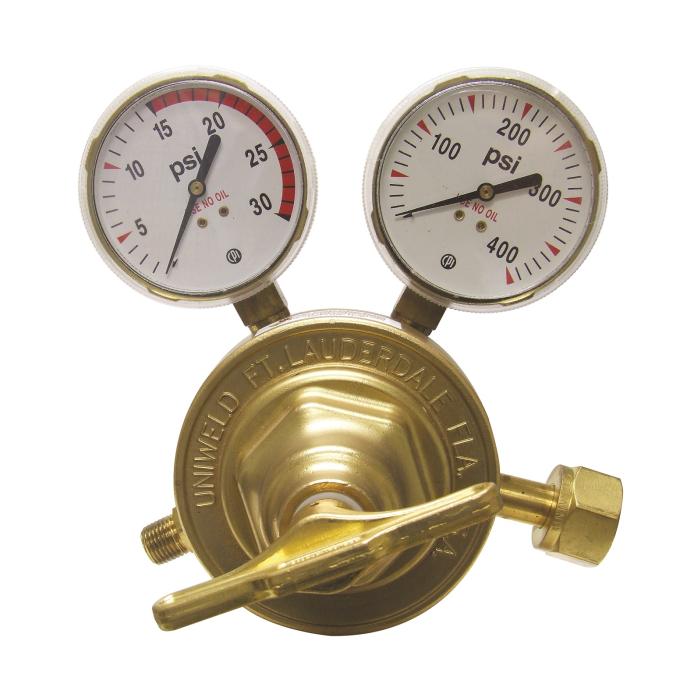

Uniweld ACETYLENE REGULATOR RV8011-1
233
ACETYLENE REGULATOR
ACETYLENE REGULATOR RV8011-1 MR82 SERIES HAVY DUTY - Forged brass body and bonnet - Easy-to-read single scale 2.1/2" gauges - 3.1/2" stainless steel diaphragm - Heavy duty mechanical stem type seat and nozzle assembly with removable back plug for ease of seat service - Delrin bushing for smooth flow adjustment - Fine mesh filter screen between inlet and seat - Pressure relief device for low pressure gauge protection only
| CGA | ACETYLENE |
|---|---|
| INLET | 300 |
| OUTLET | “B” (LH) |
| CONNECTION | 9/16"-18(M) |
| DEL. PSIG | 2-15 |
| REPLACEMENT | G22; 30 PSI (RL) |
| 2" GAUGES | G1S; 400 PSI |
| IMENSIONS | Depth: 6 .1/ 2" |
| Width: 7" | |
| Height: 6 .1/ 2" | |
| Weight: 6 2lbs | |
| Weight | 2 KG |
| ID | 2193541 |
