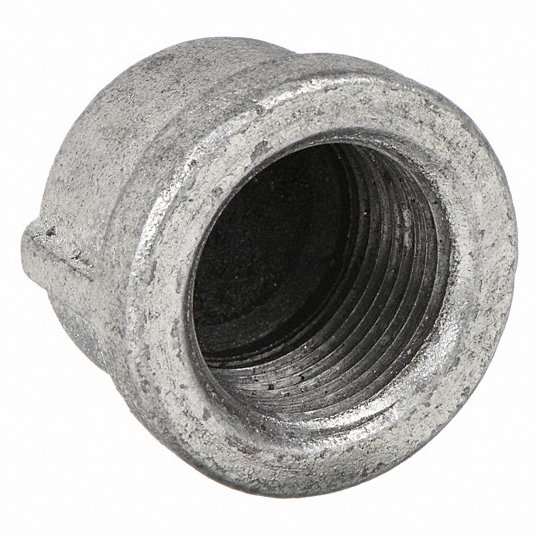

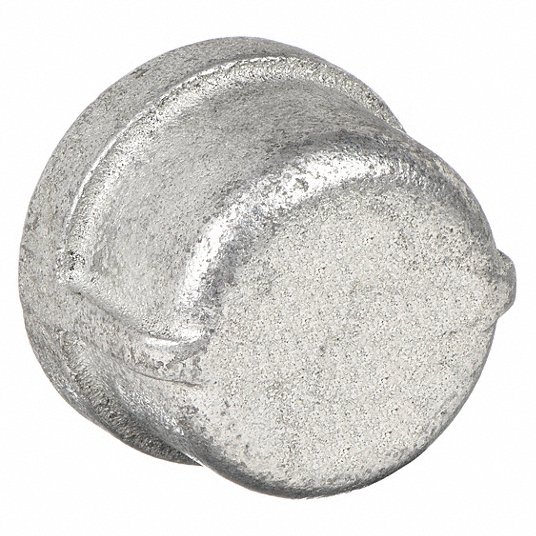

Anvil Round Cap, Malleable Iron, 1 1/4 in Pipe Size, Female NPT, Class 150 319900643
19
27
Round Cap
Features
- For low-pressure plumbing applications including air, water, natural gas, and steam.
| Nominal Pipe Size | 1 1/4 in |
|---|---|
| Pipe Fitting Material | Malleable Iron |
| Finish | Coating / Galvanized |
| Class | Class 150 |
| Fitting Connection Type | Female NPT |
| Maximum Operating Pressure | 300 psi @ 150 Degrees F |
| Max. Steam Pressure | 150 psi @ 350 Degrees F |
| Temp. Range | -20 Degrees to 350 Degrees F |
| Plug Construction | Solid |
| Standards | ASME B16.3, ASTM A197 |
| Weight | 0.2721552 KG |
| ID | 1241778 |
