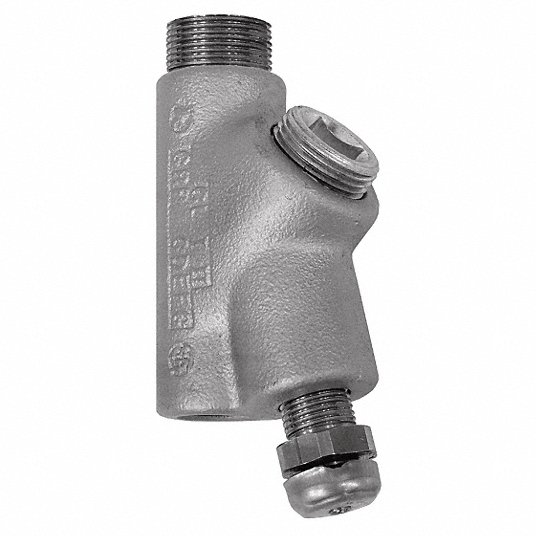

Appleton Electric Sealing Fitting with Drain - Vertical, Iron, 3/4 in Trade Size, Male, 3 11/16 in Overall Length EYD-26
282
403
Sealing Fitting
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC.
- It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another.
- It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system.
- A smooth, rounded integral bushing in each hub protects conductor insulation.
- The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.
| Trade Size | 3/4 in, 3/4 in |
|---|---|
| Ends - Hazardous Fittings | 3/4 in FNPT x 3/4 in MNPT |
| Overall Length | 3 11/16 in |
| Material | Iron |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups C, D, Class II, Groups E, F, G, Class III |
| Thread Gender | Male |
| Application | Prevent Passage of Gases, Vapors or Flames From One Portion of Conduit Systems to Another |
| Color | Silver |
| Compatible Conduit Trade Size | 3/4 in |
| Compatible Conduit Type | IMC, RMC |
| Conduit Orientation | Vertical |
| Connection Type | Threaded |
| Position | Vertical |
| Seal Type | 25% Fill, Vertical Conduit Drain Sealing Fittings |
| Series | EYD |
| Standards | CSA C22.2 No 30, UL 886 |
| Thread Type | NPT |
| Turning Radius | 1.19 in |
| Weight | 0.5896696 KG |
| ID | 1117703 |
