Fluke Phase Sequence Tester Digital, 40 to 700V AC, 15 Hz to 400 Hz, CAT III 600V/CAT IV 300V FLUKE-9040
2,003
2,862
Phase Sequence Tester
- Large display to easily determine field rotation
- Indication for all three phases
- Light weight of 200g for comfortable portability
- Includes clip adaptors to suit your testing process
- Takes power from the unit under test eliminating the need for an external power pack or batteries
Split in 4 payments of 500.75
monthly without fees , learn more
Split it into 4 payments of 500.75
interest-free , learn more

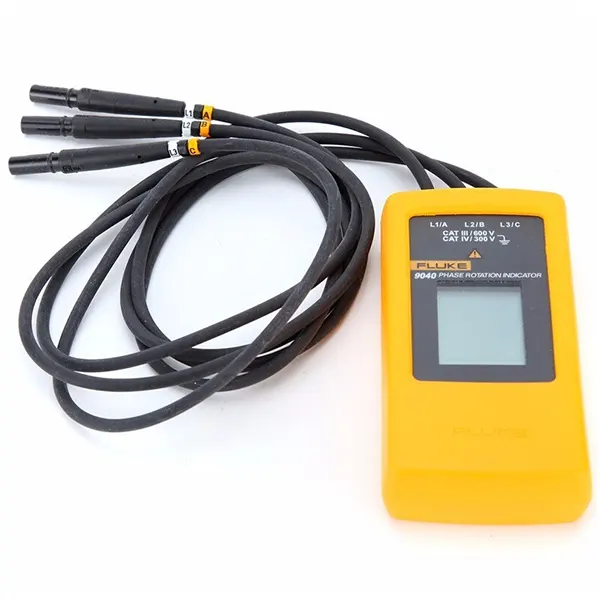

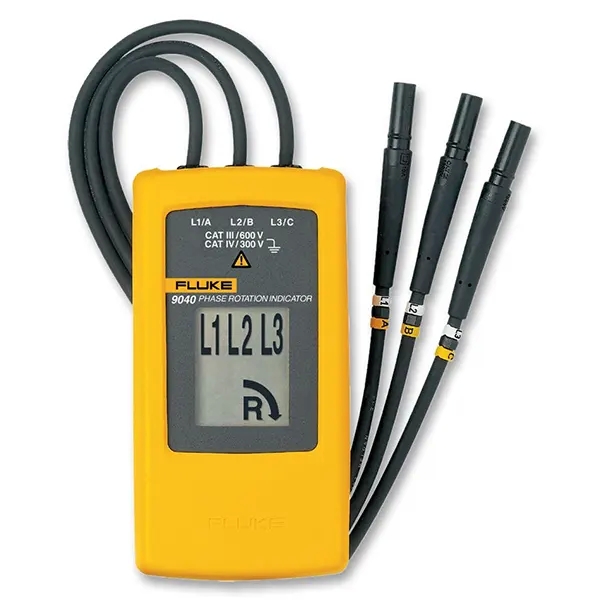

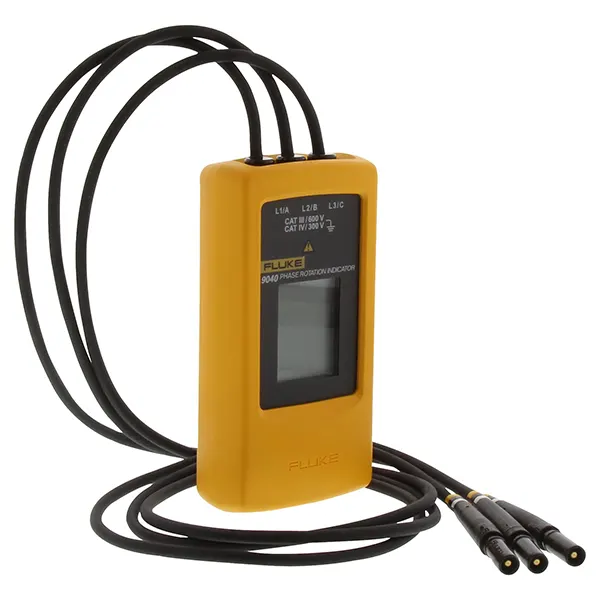

Fluke 9040 Phase Sequence Tester
The Fluke 9040 Phase Rotation Indicator is a portable handheld instrument designed to detect the rotary field of three-phase systems. With three test leads, this rugged tester easily determines a clockwise or counterclockwise direction. The Fluke 9040 Phase Sequence Tester is a phase rotation indicator with high voltage capability for industrial applications. The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives, and electrical systems. The Fluke 9040 is a rotary field indicator and can provide a clear indication of the 3 phases via an LCD and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications.
Fluke Phase Sequence Tester Features
- 3 phase indication.
- Indication of phase rotation.
- Clear LCD display.
- No battery is required.
- These meters help ensure correct installation and minimize motor and electrical system damage.
Applications
- Assembly lines
- Automotive industry
- Material handling equipment
| Display Type | Digital |
|---|---|
| Voltage Range | 40 to 700V AC |
| Frequency Range | 15 Hz to 400 Hz |
| CAT Safety Rating | CAT III 600V, CAT IV 300V |

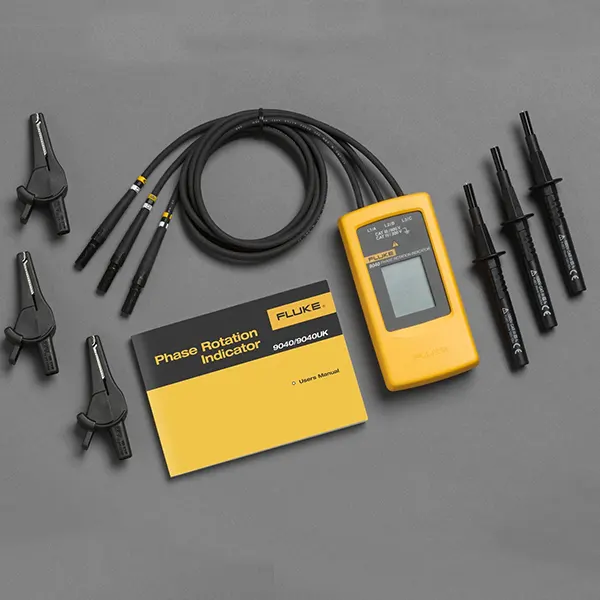

| Includes | Industrial Sockets; Test Probes |
| Display Screen Type | LCD |
| For Phase | Three |
| Manufacturer Warranty Length | 2 yr |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | 32 °F |
| Power Source | Wire Leads |
| Tool Width | 2.4 inch |
| Includes | Test Probes |
| Weight | 0.65 KG |
| ID | 1027453 |
