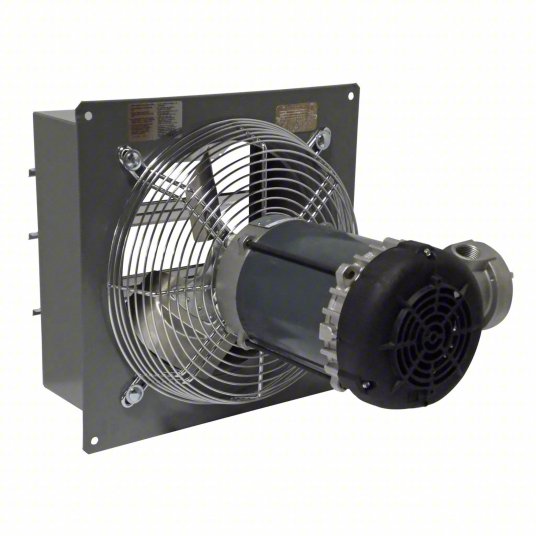

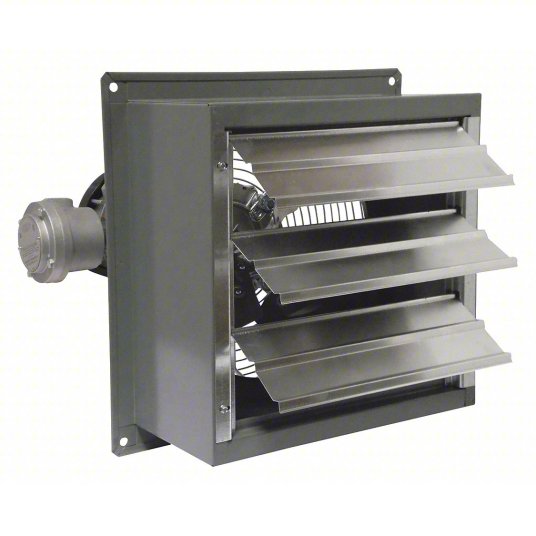

CANARM Shutter Mounted Hazardous Location Exhaust Fan,12-inch Blade, 1 Speed, 1/3 hp, 1,640 cfm, 115V AC SD12-XPF
4,127
5,896
Exhaust Fan
Canarm Exhaust Fan SD12-XPF
This easy to install Canarm Exhaust Fan SD12-XPF requires little maintenance and features a totally enclosed, ball-bearing motor with thermal overload protection. The fan blades are constructed of well-balanced, heavy-gauge aluminum. Designed with a rugged steel welded box housing that has a durable, powder-coated finish.
Canarm Exhaust Fan Features:
- These fans feature an explosion-proof motor and are rated for use in areas where combustible dust or certain flammable gases or vapors are present.
- Direct-drive shutter-mount exhaust fans have few moving parts and typically require minimal maintenance.
- Each fan features a motor that's directly mounted on the fan shaft.
| Number of Blades | 3 |
|---|---|
| Max. Exhaust Airflow @ 0.000 in SP | 1,640 cfm |
| Exhaust Airflow @ 0.250 in SP | 1,390 cfm |
| Hazardous Location Class | Class I, Group C and D; Class II, Group F and G |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Horsepower | 1/3 hp |
| Phase | 1 |
| Manufacturer Part Number | SD12-XPF |
| Blade Diameter | 12 inch |
| Blade Material | Aluminum |
| Frame Material | Steel |
| Motor Speed | 1,625 RPM |
| Noise Level @ 0.000 in SP @ 5 ft1 | 2 sones |
| Number of Speeds | 1 |
| Frame Finish | Powder Coated |
| For Cut-Out Height | 15 inch |
| For Cut-Out Width | 15 inch |
| Assembled | Assembled |
| Electrical Connection | Hardwired |
| Nameplate Voltage | 115V AC |
| Weight | 19.91 KG |
| ID | 1589397 |
