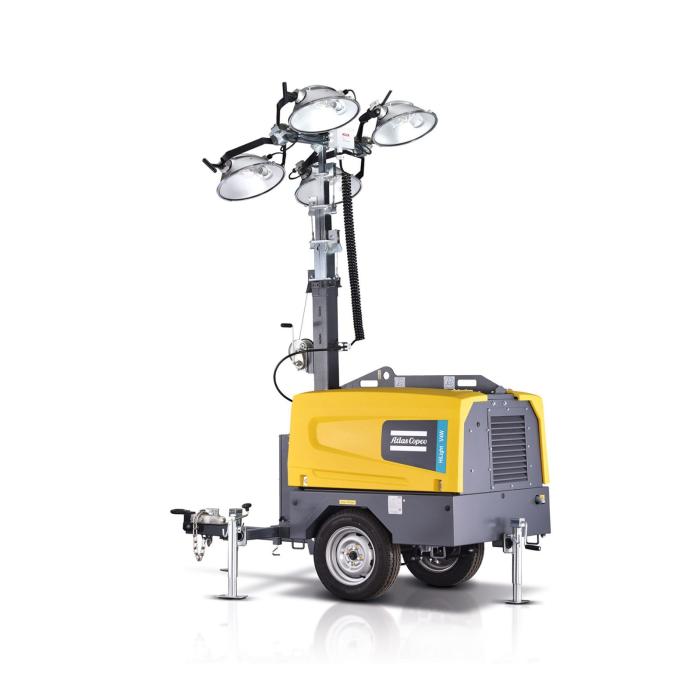

Atlas Copco Light Tower Metal Hi light, 3 cylinder engine V4 W
32,355
Light Tower Metal Hi light
- LED HI Light tower lamps have an aluminum casting which provides heavy duty protection, even during transportation.
- The LED lamps have a high CRI (Color Rendering Index) score (> 85 out of 100).
- The specially designed directional optics of the LED HI Light range offer incredible light distribution.
- Our LED HI Light towers achieve up to 5.000 square-meters of light coverage with an average level of 20 luxes.
- LED lamps have a life expectancy of more than 50.000 hours.
- Our LED technology enables us to set the industry benchmark when it comes to fuel efficiency.
| Light coverage m2 (average 20 luxes) | 4000 (average 20 luxes) |
|---|---|
| Lamps | Metal halide |
| Mast | Vertical manual |
| Extra features | HardHat® canopy |
| Performance Data | |
| Rated Frequency Hz | 50 Hz - 60 Hz |
| Rated Voltage V | 230 - 120 |
| Rated Power (PRP) kW | 6 | 8 |
| Operating Temperature (min | max) oC / -25 />50 |
| Sound Power @ 7m (LPA) dB(A) | 87 - 89 |
| Sound pressure level (LpA) at 7m | 63 - 64 |
| Engine | |
| Model | Kubta D1105 |
| Speed rpm | 1.500 - 1.800 |
| Rated Net Output (PRP) kW | 8 | 9,5 |
| Coolant | Water |
| Number of cylinders | 3 |
| Alternator | |
| Model | Atlas Copco DP06/ AG164 |
| Rated Output kVA | 6 | 8 |
| Insulation | Enclosure protection class/IP / H/23 |
| Energy Consumption | |
| Fuel tank capacity liter | 160 |
| Autonomy | 90 |
| Power Output | |
| Auxiliary power kW | 2 |
| Lights | |
| Floodlights | Metal halide |
| Wattage W | 4 x 1000 |
| Mast | |
| Type | Manual vertical, 5 section |
| Rotation degrees | 360 |
| Maximum Height m | 7,5 |
| Maximum Speed Wind kph | 80 |
| Enclosure and trailer | |
| Type | DOT US Compliant Unibody trailer with 4 point leveling system. For EU |
| Base Frame | Spillage free frame |
| Enclosure | Gull-wing HardHat doors |
| Dimensions and weigth | |
| Dimensions in transport (LxWxH) m | 1,8 x 1,35 x 2,97 |
| Weight kg | 826 |
| Weight | 826 KG |
| ID | 2583968 |
