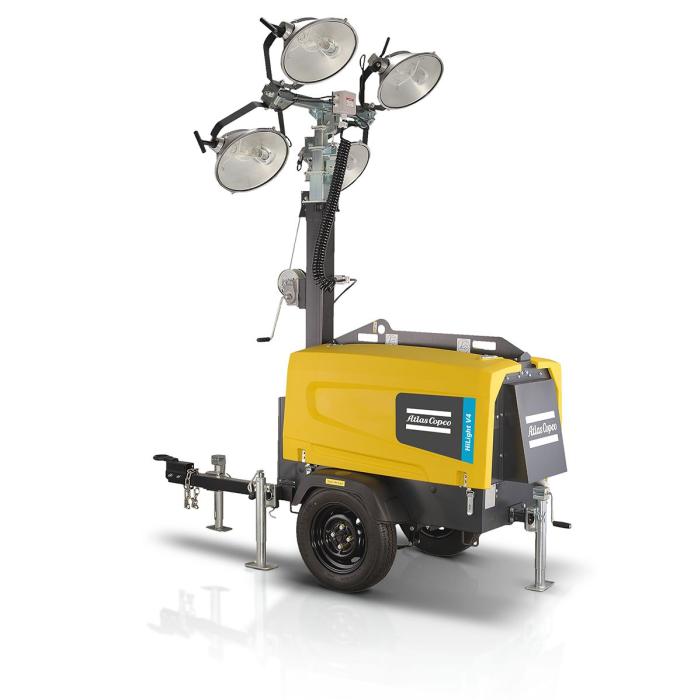

Atlas Copco Light Tower Metal HiLight, 2 cylinder engine V4
29,910
Light Tower Metal HiLight
- 4 LED lamps x 350 W / 4 x 1000 W metal halide
- 4 heavy duty stabilizers with level bubble
- Spring axle lower case and tow hitch conforms to transportation requirements
- Compact Kubota Z482 engine
- Spillage free frame with fluid containment
- Oil & coolant drains for serviceability
- User friendly control & power panel:
- Independent circuit breakers
- Hour meter & key switch
- 105 liter fuel tank for long run time between fills
OPTIONS:
- Emergency stop button
- DC electric winch
- Ground connection
- LC 1003 digital controller with photocell and weekly timer
- Engine block heaters
- Spark arrestor
- Customized colors
- Auxiliary power output
| Performance Data | |
|---|---|
| Rated Frequency Hz | 50 Hz - 60 Hz |
| Rated Voltage V | 230 - 240/120 |
| Rated Power (PRP) kW | 5,4 - 6,8 |
| Operating Temperature (min | max) oC / -10/49 -10/49 |
| Sound Power @ 7m (LPA) dB(A) | 71 - 73 |
| Engine - Kubota | |
| Model | Z482 |
| Speed rpm | 3.000 - 3.600 |
| Rated Net Output (PRP) kW | 6,9 - 8,1 |
| Coolant | Liquid cooled diesel |
| Number of cylinders | 2 |
| Alternator - Sincro | |
| Model | EK 2 MCT |
| Rated Output kVA | 6 - 7,5 |
| Insulation | Enclosure protection class/IP / H/23 |
| Consumption | |
| Fuel tank capacity liter | 105 |
| Runtime before refueling @ 4kW Load hrs | 57 - 50 |
| Battery | 45 Ah, 390 CCA |
| Power Output | |
| Aux Power MCCB kW | 1,4 - 2 |
| Lights | |
| Floodlights | 4 x Metal Halide |
| Wattage W | 4 x 1.000 |
| Luminosity | 5,4lm/m2 @ 28.328m2 (0.5fc @ 7 acres) |
| Manual mast | |
| Type | Vertical, 5 section with |
| Rotation degrees | 360 |
| Maximum Height m | 7,5 |
| Maximum Speed Wind kph | 80 |
| Construction | |
| Traier | Unibody trailer with 4 point leveling system |
| Tires | 155R13 |
| Tow Hitch | 2 inch ball / pintle combo |
| Base Frame | Fluid containment system with external drain system |
| Enclosure | Gull-wing HardHat doors |
| Dimensions and weigth | |
| Dimensions in transport (LxWxH) m | 1,67 x 1,10 x 2,50 |
| Dimensions in operation (LxWxH) m | 2,90 x 2,31 x 7,54 |
| Weight kg | 694 |
| Weight | 694 KG |
| ID | 2583964 |
