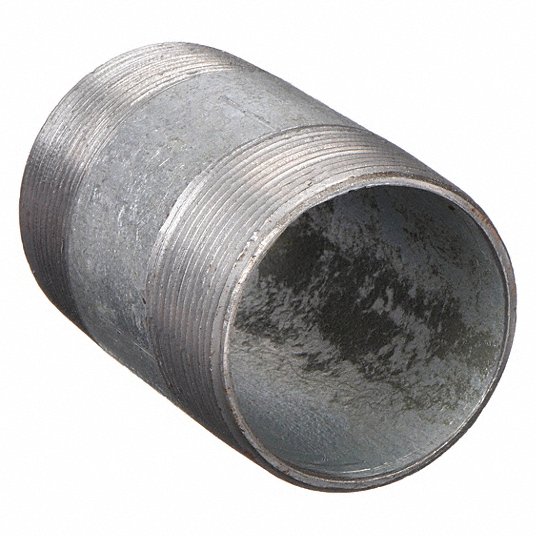

Beck Galvanized Steel Nipple, 1/8 in x 6 in, Pipe Schedule 40 331002204
15
21
Steel Nipple
Has a weld bead inside, is NPT threaded at both ends, and resists rust and corrosion.
- For low-pressure plumbing applications including air, water, oil, natural gas, and steam.
- Certified for use in potable water applications.
- Threads conform to ANSI B1.20.1 standards.
- Material conforms to ASTM A-53 Type E, Grade A standards.
- Manufacturing conforms to ASTM A-733 standards.
| Pipe Connection Type | Threaded on Both Ends |
|---|---|
| Pipe Type | Pipe Nipple |
| Pipe Schedule | 40 |
| Material - Pipe | Galvanized Steel |
| Pipe Weld Type | Electric Resistance Weld |
| Pipe Size - Nominal | 1/8 in |
| Overall Pipe Length | 6 in |
| Pipe Thread Type | MNPT x MNPT |
| Max. Pressure | 150 psi @ 150 Degrees F |
| Inside Dia. (In.) | 0.269 in |
| Outside Dia. (In.) | 0.405 in |
| Wall Thickness (In.) | 0.068 in |
| Metal Detectable | Yes |
| Standards | ASTM A-53 Type E, ASTM A-733, Grade B, WWN 351 |
| Weight | 0.04989512 KG |
| ID | 1257470 |
