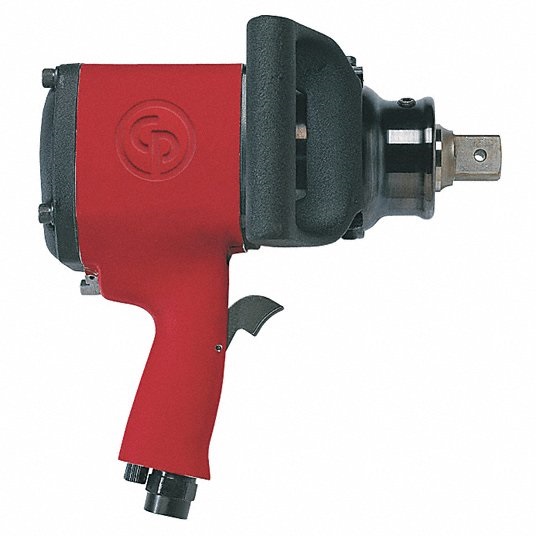

Chicago Pneumatic Air Powered, Impact Wrench, 90 psi, 1,400 ft-lb Fastening Torque, Clearance offer without warranty 11C957 CP796
11,851
Impact Wrench
Compact pistol-grip air-powered impact wrenches (sometimes called stubby wrenches) have a shorter front-to-back length than standard pistol-grip impact wrenches, allowing for access to tight spaces.
- They have higher torque and larger drive sizes than inline impact wrenches, but often have lower torque than full-size tools.
- The pistol grip has a trigger that is pressed to activate the wrench.
- Pistol grips provide ergonomic handling when working on vertical surfaces from the user's waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.
| Air Consumption | 52 cfm |
|---|---|
| Air Inlet | 1/2 in NPT |
| Air Pressure | 90 psi |
| Max. Air Pressure | 90 psi |
| Min. Air Pressure | 90 psi |
| Min. Hose Size | 1/2 in |
| Exhaust Location | Bottom |
| Duty Rating | Industrial Duty |
| Breakaway Torque | 2,000 ft-lb |
| Fastening Torque | 1,400 ft-lb |
| Free Speed | 4,100 RPM |
| Impact Rated | Yes |
| Impact Sound Level | 112 dB |
| Impacts per Minute | 900 |
| Number of Speed Settings | 3 |
| Power to Weight Ratio | 100 ft-lb/lb |
| Max. Bolt Capacity | 1 3/8 in |
| Drive Size | 1 in Square |
| Drive Type | Standard |
| Retainer Type | Through Hole |
| Clutch Style | Double Rocking Dog |
| Tool Style | Compact |
| Vibration Level | 18.2 m/sq sec |
| Overall Length | 9 1/2 in |
| Handle Material | Aluminum |
| Housing Material | Steel |
| Handle Type | Pistol Grip |
| Tool Brand | Chicago Pneumatic |
| Features | Industrial Quality And Dependability, Operator Comfort, Powerful Motor And Extremely Durable Clutch |
| Includes | Side Handle |
| Tool Weight | 20.0 lb |
| Standards | EN ISO 11148-6:2013, ISO-28927-2 |
| Weight | 9.07 KG |
| Code | BD-11C957 |
| ID | 975549 |
