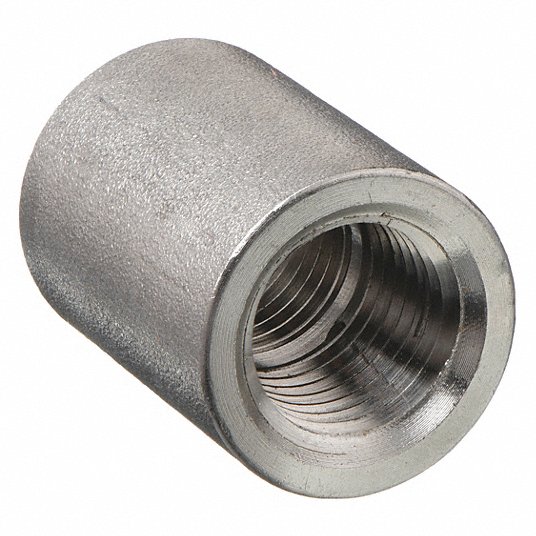

Grainger Approved Coupling, 304 Stainless Steel, 1/4Inch x 1/4Inch Fitting Pipe Size, Female NPT x Female NPT, Class 150 1LRY6
9
13
Coupling
Split in 4 payments of 2.17
monthly without fees , learn more
Split it into 4 payments of 2.17
interest-free , learn more
Features
- This GRAINGER APPROVED coupling is designed with 304 stainless steel for good corrosion resistance.
- Compatible with stainless steel Schedule 40 pipe.
- For use with air, water, oil, natural gas, and steam.
| Pipe Fitting Material | 304 Stainless Steel, Stainless Steel |
|---|---|
| Material Grade | 304 |
| Class | Class 150 |
| For Pipe Schedule | 40 |
| Fitting Side A Nominal Pipe Size | 1/4 in |
| Fitting Side A Gender | Female |
| Fitting Side A Type | NPT |
| Fitting Side A Outside Diameter | 1/4 in |
| Fitting Side A Pipe Threading | 18 |
| Fitting Side B Nominal Pipe Size | 1/4 in |
| Fitting Side B Gender | Female |
| Fitting Side B Type | NPT |
| Fitting Side B Outside Diameter | 1/4 in |
| Fitting Side B Pipe Threading | 18 |
| Maximum Operating Pressure | 300 psi |
| Max. Steam Pressure | 150 psi |
| Overall Length | 25.4 mm |
| Includes Pre-Applied Thread Sealant | No |
| Includes Seal | No |
| Color | Silver |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Potable Water, Steam |
| Standards | ASME B1.20.1, ASTM A351, MSS SP-114 |
| Weight | 0.036 KG |
| ID | 1527465 |
