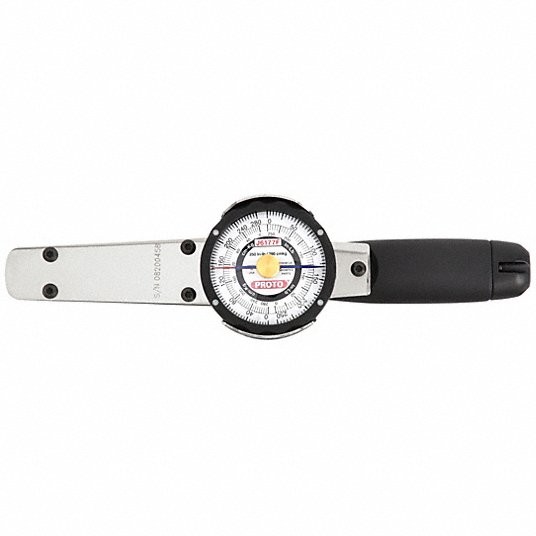

Proto Dial Torque Wrench, Inch-Pound, Centimeter-Kilogram, 3/8 inch J6177F
953
Dial Torque Wrench
Split in 4 payments of 238.17
monthly without fees , learn more
Split it into 4 payments of 238.17
interest-free , learn more
Features
- These standard-head dial torque wrenches have a design where accuracy is not affected by hand position.
- They have a nonmoving head and a memory pointer that indicates the maximum torque applied to the fastener.
- These wrenches can also identify the torque required to loosen tightened fasteners.
| Torque Measurement Type | Centimeter-Kilogram, Inch-Pound |
|---|---|
| Drive Size | 3/8 in |
| Torque Range | 50 to 250 in-lb, 56 to 280 cm-kg |
| Torque Increments | 5 cm-kg, 5 in-lb |
| Overall Length | 10 in |
| Extended Data Testing | Yes, NIST |
| Reset Type | Memory Needle |
| Primary Scale Minimum Torque | 50 in-lb |
| Primary Scale Maximum Torque | 250 in-lb |
| Secondary Scale Minimum Torque | 56 cm-kg |
| Secondary Scale Maximum Torque | 280 cm-kg |
| Clockwise Accuracy | +/-4% |
| Counterclockwise Accuracy | +/-4% |
| Handle Type | Plain |
| Head Material | Alloy Steel |
| Handle Color | Black |
| Handle Material | Rubber |
| Memory Needle | Yes |
| Finish | Chrome |
| Torque Adjustability | Adjustable |
| Visual | Audible Indicators / No |
| Measurement Type | SAE |
| Insulated | No |
| Corrosion Resistant | Yes |
| Nonsparking | No |
| Ratcheting | Yes |
| Calibration Certificate Included | Yes |
| Rotation | Clockwise and Counterclockwise |
| Standards | ASME B107.14M, ISO 6789, JIS B4650 |
| Tether Style | Tether Capable |
| Extension Handles | No |
| Head Type | Standard |
| Includes | (1) Blow Molded Box |
| Min. Number of Cycles | 5,500 |
| Weight | 1.3 lb |
| Weight | 0.8 KG |
| Code | BD-BJB-J6177F |
| ID | 1020120 |
