Out of Stock

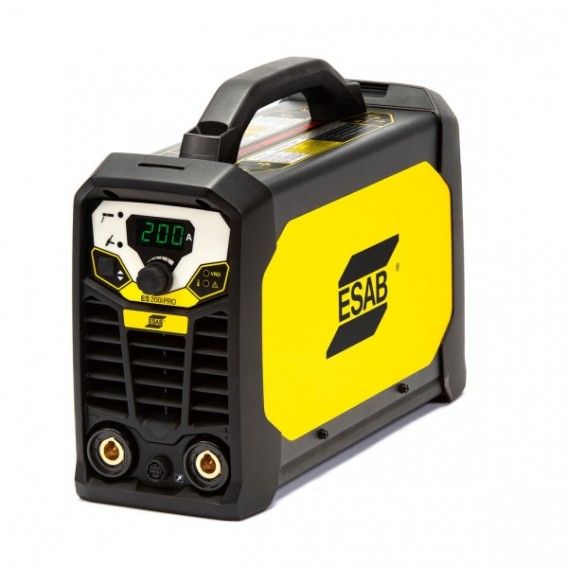

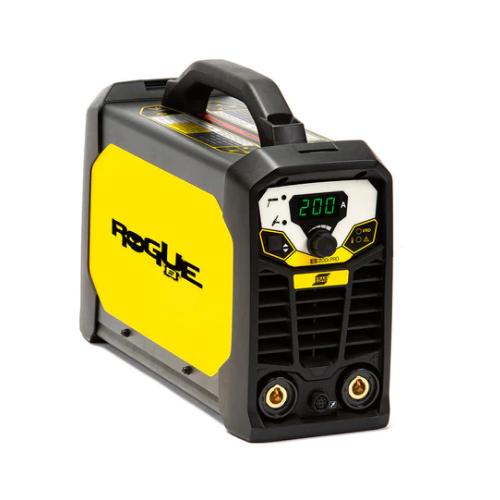

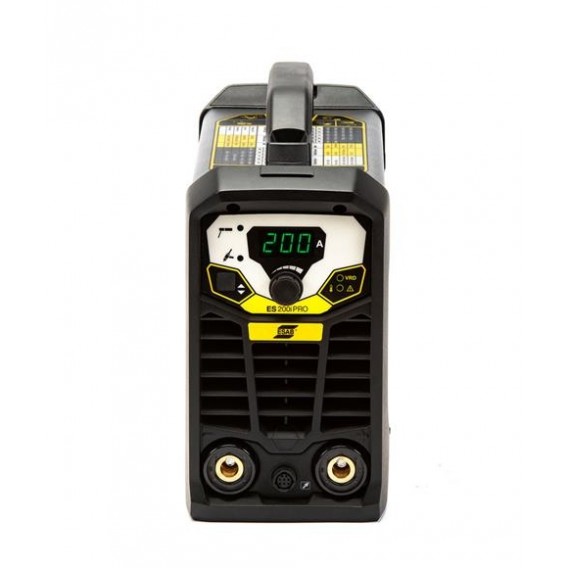

Esab ARC / TIG Welding Machine, Welds Electrodes Up To 4 mm, 200 Amperes, 110 & 220V, Single Phase, 8.4kg ROGUE ES200i Pro
1,889
ARC / TIG Welding Machine
- Superior Arc characteristics – Smooth& Stable performance
- Easy to Use – Set the welding current and weld with excellent results
- PFC ensures a stable arc& resistant to power fluctuations even while working on long extension cables up to 100 m (PRO version only)
- The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job
- The Rogue is a robust and durable power source for professional welders
Features
- The Rogue is a robust and durable power source for professional welders.
- 3 m mains cable and plug.
- The machine provides state-of-the-art welding performance and reliability through the use of the latest high-performance power electronics and Digital control; ensuring a precise consistent arc.
- The Rogue provides a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non-alloyed steel, stainless steel, and cast iron.
- The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job.
- Being digital the Micro-processor precisely controls all functions and provides Best-in-Class welding performance across the amperage range of the machine.
- The Rogue can be used with electrodes up to 4.0mm Ø.
- The Rogue can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.
- Superior Arc characteristics – Smooth, Stable performance.
- Generator Compliant – Suitable for use with generators (recommended 7 kW).
- Easy to Use – Set the welding current and weld with excellent results.
- Practical Design - makes the power source easy to carry which enables use at almost any worksite.
- Robust Design – IP23S Designed for Fabrication Shop or Site application.
- PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (PRO version only).
- Optional analog remote control (PRO version only)
Industry
- Repair and Maintenance
- Civil Construction
- Agricultural Equipment
- Industrial and General Fabrication

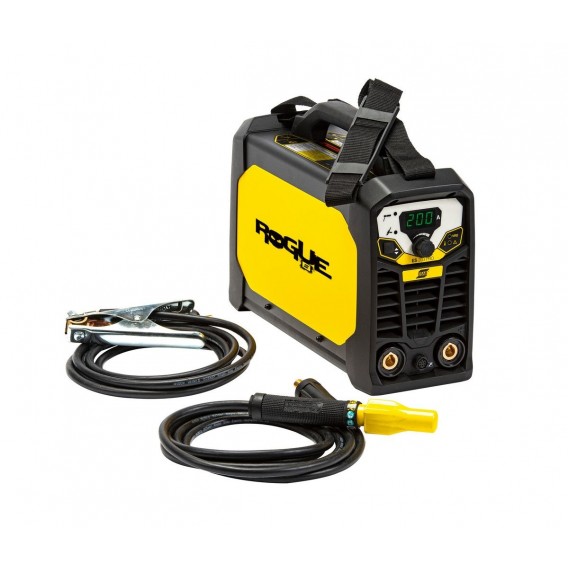

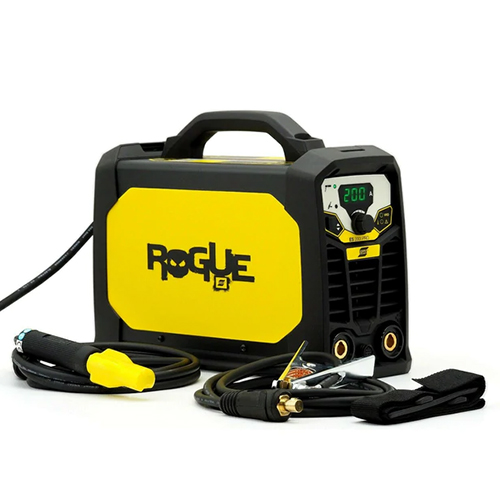

Accessories
- Shoulder strap.
- Electrode holder.
- 3 m return cable and clamp.
| Primary Voltage 1 ph | 115/230 VAC ± 15%, 1ph, 50/60 Hz |
|---|---|
| Maximum Output | 200 A |
| Rated kVA | 6.9 kVA |
| Energy Save Mode | 50 W |
| Open Circuit Voltage | 78 V DC |
| MMA Welding Output | at 20% Duty Cycle / - |
| MMA Welding Output | at 25% Duty Cycle / 200 A / 28.0 V |
| MMA Welding Output | at 60% Duty Cycle / 129 A / 25.2 V |
| MMA Welding Output | at 100% Duty Cycle / 100 A / 24.0 V |
| TIG Welding Output | at 25% Duty Cycle / 200 A / 18.0 V |
| TIG Welding Output | at 60% Duty Cycle / 129 A / 15.2 V |
| TIG Welding Output | at 100% Duty Cycle / 100 A / 14.0 V |
| Current Range | 10 – 200 A |
| Operating Temperature | -10 to +40 °C |
| Enclosure Class | IP23S |
| Certification Mark | CE |
| Dimensions | 403 x 153 x 264 mm |
| Weight | 8.4 KG |
| ID | 2627913 |
