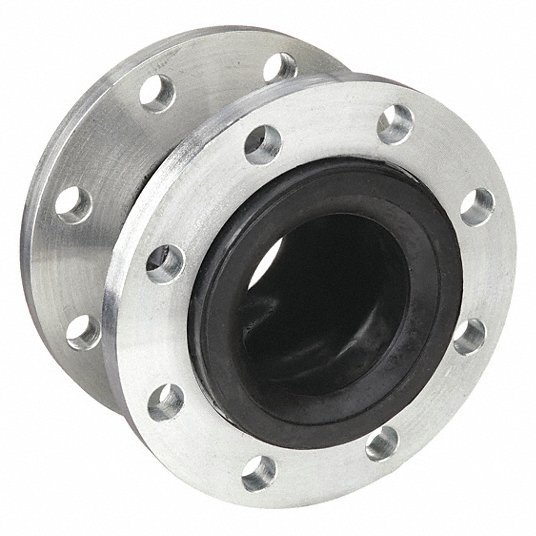

Grainger Approved Expansion Joint, 4 inch Pipe Size Single Sphere EPDM, -50 to 230 Degree F Temp AMSE204
518
740
Expansion Joint
Split in 4 payments of 129.49
monthly without fees , learn more
Split it into 4 payments of 129.49
interest-free , learn more
Features
- This flexible, nonmetallic expansion joint can absorb pipe movement/stress to reduce system noise and extend system life.
- The corrosion-resistant plated carbon steel flanges rotate for quick installation.
- Expansion joint is ideal for use in HVAC, industrial piping, power generating, marine service, pulp and paper, water and wastewater, and pollution control applications
| Type | Single Sphere |
|---|---|
| Pipe Size | 4 in |
| Connection | Drilled |
| Material | EPDM |
| Bolt Holes | 8 |
| Bolt Hole Size | 5/8 in -11 |
| Bolt Circle Dia. | 7.5 in |
| Flange Thickness | 0.71 in |
| Max. Pressure | 225 psi @ 72 Degrees F |
| Temp. Range | -50 to 230 Deg F |
| Vacuum | 26 In Hg At 72 Deg F |
| Outside Dia. | 9 in |
| Overall Length | 6 |
| Weight | 7.75 KG |
| ID | 2144033 |
