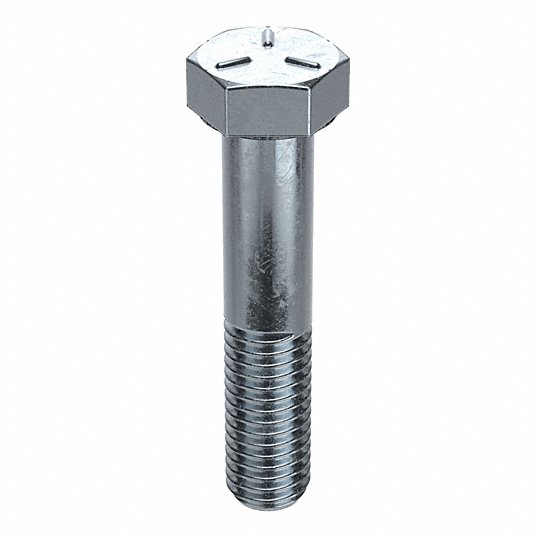

Fabory Hex Head Cap Screw: Steel, Grade 5, Zinc Plated, 1/2inch-13, Coarse, 2 3/4 inch length, 10 Packet N01200.050.0275
37
52
Hex Head Cap Screw
Features
- Commonly used Grade 5 hex cap screws are heavier duty than Grade 2 steel options and are made from medium carbon steel and heat-treated.
- Grade 5 steel has 120,000 psi tensile strength and meets ASME B18.2.1 dimensional standards and SAE J429 material quality standards.
- These screws may be used in medium-duty applications.
- They come in a black oxide finish or may be zinc plated or chrome plated.
- Zinc plating helps provide durability in wet environments.
- Chrome plating increases the hardness, durability, and corrosion resistance of screws.
| System of Measurement | Inch |
|---|---|
| Thread Size | 1/2inch-13 |
| Material | Steel |
| Material Grade | ClassGrade / 5 |
| Finish | Zinc |
| Plated Thread Type | Coarse |
| Thread Style | Partially Threaded |
| Minimum Thread Length | 1-1/4 inch |
| Head Width | 3/4 inch |
| Head Height | 5/16 inch |
| Tensile Strength | 120,000 psi |
| Thread Direction | Right Hand |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Head Style | Hex |
| Rockwell Hardness | HRC19 |
| Overall Length | 2-3/4 inch |
| Drive Hex Maximum Temperature | 302 °F |
| Thread Fit | 2A |
| Minimum Temperature | -58 °F |
| Fastener Length | 2-3/4 inch |
| Dimensional Standards | ASME B18.2.1 |
| Material Quality Standards | SAE J429 |
| Pack Size | Small Pack |
| Weight | 0.84 KG |
| ID | 2156522 |
