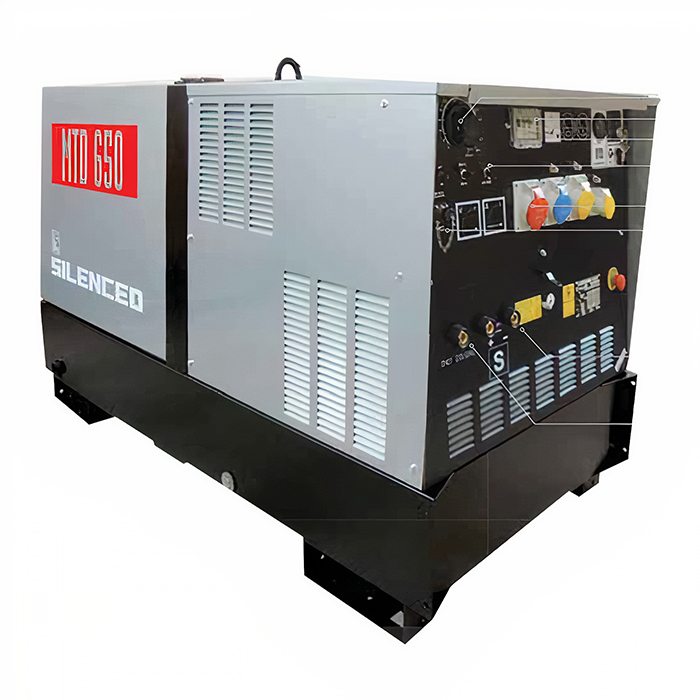

Fimer MMA Welding Machine, Diesel Generator, Water Cooled , 550 amp, Single And Three Phase, 50/60 Hz, 16 kVA, Made in Italy MTD650
52,465
Diesel Engine Welder Generator
Fimer MTD 650. Diesel Welding Machine
Fimer MTD 650 Diesel Welding Machine, Italian Industry, 550 Amp, Perkins Engine, 16 KVA, 4 Cylinders, 2 Power Outlets, 220 Volt and 380 Volt
Features
- Potentiometer
- Arc Force
- Switch Protection
- Plugs
- Remote Control
- (-) Negative Connection
- (+) Positive Connection
- Voltmetro
Applications
- Maintenance
- Installation
- Repair
- Building sites
- Hydraulic
- Oil
- Gas
| Output range Duty Cycle 35 % ( 1 Phase ) | 520 A |
|---|---|
| Output range Duty Cycle 60 % ( 1 Phase ) | 460 A |
| Output range Duty Cycle 100 % ( 1 Phase ) | 420 A |
| Output range Duty Cycle 35 % ( 3 Phase ) | 550 A |
| Output range Duty Cycle 60 % ( 3 Phase ) | 500 A |
| Output range Duty Cycle 100 % ( 3 Phase ) | 450 A |
| Open circuit voltage | 70 V |
| Frequency | 50 Hz & 60 Hz |
| Fuel | Diesel |
| A.C. generation 1PH (48V-110V-230V) - 3PH | (5 - 6 - 12 kVA) - 16 kVA |
| Motor | Perkins |
| Displacement | 2.216 cm3 |
| Cylinders | 4 |
| Cooling system | H2O |
| Starter | Electric |
| Speed ( 1 Phase ) | 1500 rpm |
| Speed (3 Phase ) | 1800 rpm |
| Fuel consumption | 3.8 L/h |
| Tank capacity | 60 L |
| Protection classification | IP 23 |
| Insulation class | H |
| Dinse | 70 mm2 |
| Measured acoustic power LwA(pressure LpA) | 91 LWA (66 dBA @ 7m) |
| Guaranteed acoustic power LwA(pressure LpA) | 92 LWA (67 dBA @ 7m) |
| Weight | 820 Kg |
| Dimensions (WxLxH) | 980x1.720x1.100 mm |
| Electrode | 1.5 - 10.0 mm |
| Arc Force | Available |
| Base Current | Available |
| Weight | 820 KG |
| ID | 2185871 |
