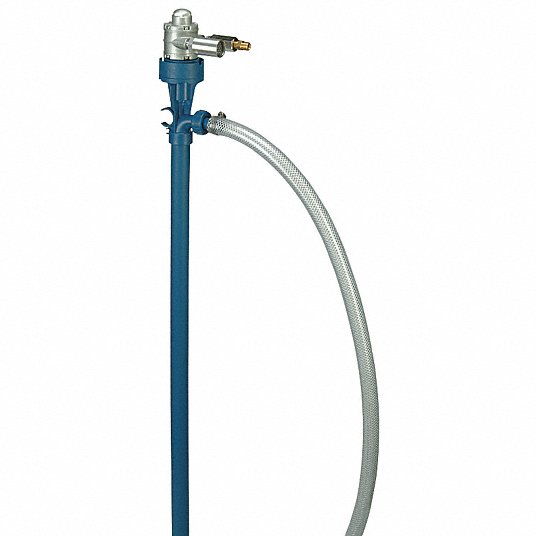

Finish Thompson Air Operated Drum Pump, Basic Pump with Discharge Hose, For Container Type Drum EFP-40 & S4 Kit
2,989
Air Operated Drum Pump
Split in 4 payments of 747.13
monthly without fees , learn more
Split it into 4 payments of 747.13
interest-free , learn more
Acid, base, and solvent pneumatic drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations.
- They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
| Pump Package Type | Basic Pump with Discharge Hose |
|---|---|
| Air Inlet Size | 1/4 in MNPT |
| Air Outlet Size | 1/4 in |
| For Container Size | 55 gal |
| For Container Type | Drum |
| Max. Flow Rate | 15 gpm |
| Max. Oil Flow | 5 gpm |
| Max. Viscosity | 300 cps |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Outlet ID | 3/4 in |
| Discharge Tube Outlet OD | 1 in |
| Min. Air Pressure | 40 psi |
| Max. Air Pressure | 40 psi |
| Compatible Chemicals | Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%) |
| Not Recommended Chemicals | Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene |
| Max. Head - Pumps | 17 ft |
| Max. Head Pressure | 7.4 psi |
| Min. Fluid Temp. | 0 Degrees F |
| Max. Fluid Temp. | 150 Degrees F |
| Motor HP | 1/2 hp |
| Motor RPM | 11,000 RPM |
| Duty Cycle | Continuous |
| Seal Material | FKM |
| Power Source | Air |
| Variable Speed | Yes |
| Noise Level | 78 db |
| Pump Connection ID | 1 1/4 in |
| Pump Connection OD | 1 1/4 in |
| Includes Discharge Hose | Yes |
| Hose Inside Dia. | 3/4 in |
| Hose Outside Dia. | 1 in |
| Hose Length | 60 in |
| Hose Tube Material | PVC |
| Housing Material - Pumps | Polypropylene |
| Includes Suction Tube | Yes |
| Suction Tube Length | 40 in |
| Suction Tube Material | Polypropylene |
| Suction Tube ID | 1 1/4 in |
| Suction Tube OD | 1 1/4 in |
| Adapter Material | Polypropylene |
| Overall Length | 46 13/16 in |
| Height Above Container | 6 7/8 in |
| Self-Priming | Yes |
| Diesel Exhaust Fluid Compatible | No |
| For Use With | Chemicals |
| Includes | Clamp, Hose, Motor, Pump |
| Explosion Proof | Yes |
| Wetted Materials | 316SS & PVC, FKM, PP, PTFE |
| Series | EF |
| For Media Type | Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water |
| Weight | 4.4 KG |
| ID | 1003505 |
