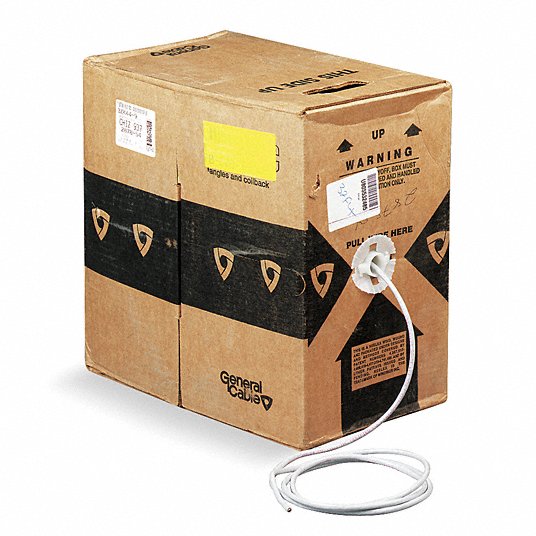

Genspeed Category Cable, Blue Jacket Color, Total Number of Conductors - Data Cable 8 (4 Pair) W5133299E
270
385
Cable
Split in 4 payments of 67.34
monthly without fees , learn more
Split it into 4 payments of 67.34
interest-free , learn more
Intended for installation in risers and general horizontal applications when installed
- Sequential foot markings.
- Solid conductor.
| Category - Data Cable | 5e |
|---|---|
| Fire Rating - Data Cable | Riser |
| Shielded | No |
| Jacket Color | Blue |
| Spool Length | 1,000 ft |
| Package Type - Data Cable | Pulling Pack |
| Conductor Size - Data Cable | 24 AWG |
| Total Number of Conductors - Data Cable | 8 (4 Pair) |
| Jacket Material - Wire and Cable | PVC |
| NEC Article and Type | 800 CMR |
| Outside Dia. | 0.195 in |
| Solid | Stranded / Solid |
| Frequency | 200 MHz |
| Operating Temp. Range | -20 Degrees to 75 Degrees C |
| Installation Temp. Range | 0 Degrees to 60 Degrees C |
| Bend Radius | 1 in |
| Pulling Force | 25 lb |
| Standards | ANSI/TIA/EIA 568B and 862, ICEA S-90-661, ISO/IEC 11801 Ed. 2.0, NEC/CEC Type CMR, UL 444, UL and cUL |
| Weight | 10.9 KG |
| ID | 1003820 |
