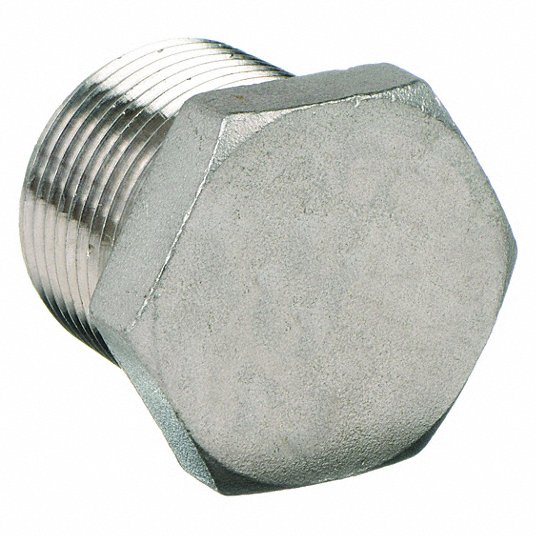

Grainger Approved Hex Head Plug: 316L Stainless Steel, 1/4 in Fitting Pipe Size, Male NPT, Class 150, 23 mm Overall 1/4 150 HEX PLG 316
6
9
Hex Head Plug
Features
- This GRAINGER APPROVED hex plug is 316 stainless steel construction with a higher nickel content for better corrosion resistance.
- Compatible with stainless steel Schedule 40 pipe
- For use with air, water, oil, natural gas, and steam
| Nominal Pipe Size | 1/4 in |
|---|---|
| Pipe Fitting Material | 316L Stainless Steel, Stainless Steel |
| Material Grade | 316L |
| Class | Class 150 |
| For Pipe Schedule | 40 |
| Fitting Connection Type | Male NPT |
| Outside Diameter | 1/4 in |
| Overall Length | 23 mm |
| Maximum Operating Pressure | 300 psi |
| Max. Steam Pressure | 150 psi |
| Temp. Range | -20 Degrees to 350 Degrees F |
| Plug Drive Style | 3 in Hex |
| Includes Pre-Applied Thread Sealant | No |
| Includes Seal | No |
| Fitting Side A Pipe Threading | 18 |
| Magnetic | No |
| Standards | ASTM A351 |
| Weight | 0.1 KG |
| ID | 1475206 |
