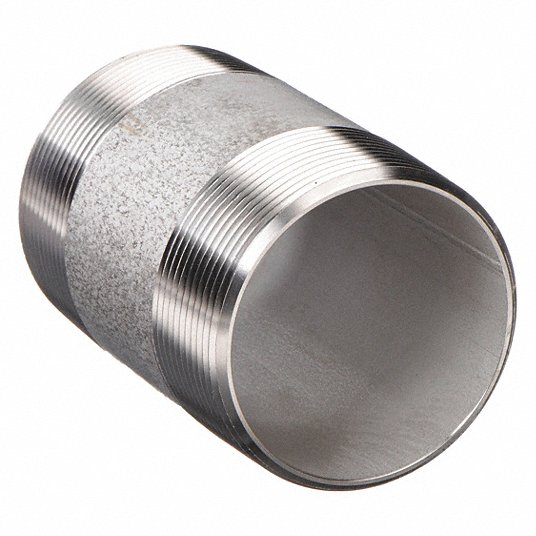

Grainger Approved Nipple: 1/2Inch Nominal Pipe Size, 316 Stainless Steel, 2 1/2Inch Overall Length, Threaded on Both Ends 1XAB3
16
23
Nipple
Split in 4 payments of 3.89
monthly without fees , learn more
Split it into 4 payments of 3.89
interest-free , learn more
Features
- Application: Air, Natural Gas, Propane, Steam, Water
| Fitting Compatibility | Schedule 40 |
|---|---|
| Gravity Flow | No |
| Inside Diameter | 5/8 in |
| Material | Stainless Steel |
| Material Grade | 316 |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 450 Degrees F |
| Metal Pipe Construction | Welded |
| Minimum Operating Temperature | -60 Degrees F |
| Nominal Pipe Size | 1/2 in |
| Outside Diameter | 13/16 in |
| Overall Length | 2 1/2 in |
| Pipe Weld Type | Continuous Weld |
| Schedule | Schedule 40 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASME B1.20.1, ASTM A312, ASTM A733 |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.109 in |
| Weight | 0.22 KG |
| ID | 1098587 |
