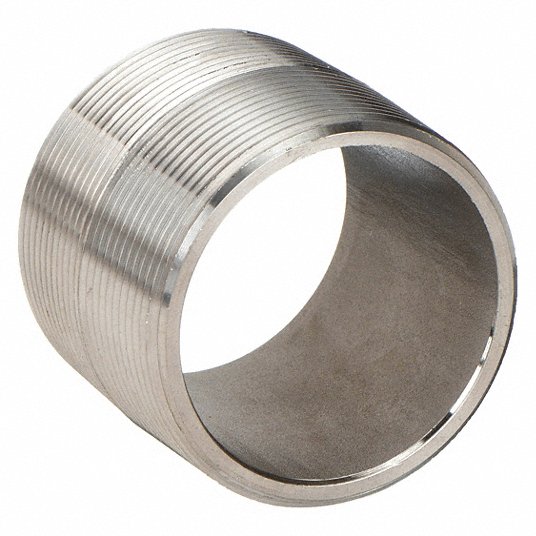

Grainger Approved Nipple: 1/2Inch, Male, NPT, 316 Stainless Steel, 1 1/8Inch L, Fully Threaded 4TPN5
16
23
Nipple
Features
- NPT threads.
- Air, Natural Gas, Propane, Steam, Water.
- Extra-heavy nipples handle higher pressures and more rugged service.
- Note: Nipples must be used with properly rated fittings.
| Fitting Compatibility | Schedule 80 |
|---|---|
| Inside Diameter | 9/16 in |
| Material | Stainless Steel |
| Material Grade | 316 |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 450 Degrees F |
| Metal Pipe Construction | Seamless |
| Minimum Operating Temperature | -60 Degrees F |
| Nominal Pipe Size | 1/2 in |
| Outside Diameter | 13/16 in |
| Overall Length | 1 1/8 in |
| Schedule | Schedule 80 |
| Side A Connection Type | Close Thread |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Close Thread |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASME B1.20.1, ASTM A312, ASTM A733 |
| Thread Configuration | Fully Threaded |
| Wall Thickness | 0.13 in |
| Weight | 0.22 KG |
| ID | 1483405 |
