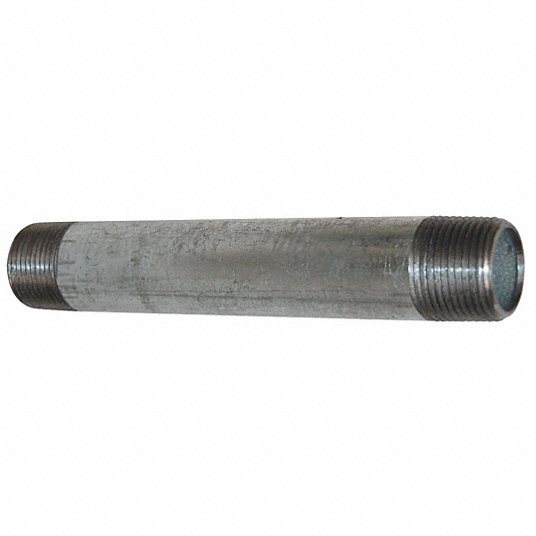

Grainger Approved Nipple: 1/4Inch Nominal Pipe Size, Galvanized Steel, 3Inch Overall Length, Threaded on Both Ends, Welded 6P760
4
6
Nipple
Split in 4 payments of 0.98
monthly without fees , learn more
Split it into 4 payments of 0.98
interest-free , learn more
Features
- This Grainger Approved nipple has a weld bead on the inside and is NPT threaded at both ends.
- Model resists rust and corrosion and is suitable for low-pressure plumbing applications including air, water, oil, natural gas, and steam.
- Certified for use in potable water applications.
| Finish | Coating / Galvanized |
|---|---|
| Fitting Compatibility | Schedule 40 |
| Material | Steel |
| Maximum Operating Pressure | 300 psi @ 150 Degrees F |
| Maximum Steam Pressure | 150 psi @ 350 Degrees F |
| Metal Pipe Construction | Welded |
| Nominal Pipe Size | 1/4 in |
| Outside Diameter | 17/32 in |
| Overall Length | 3 in |
| Pipe Weld Type | Electric Resistance Weld |
| Resistance Properties | Corrosion-Resistant |
| Schedule | Schedule 40 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASTM A53, ASTM A733 |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.088 in |
| Weight | 0.04 KG |
| ID | 1862130 |
