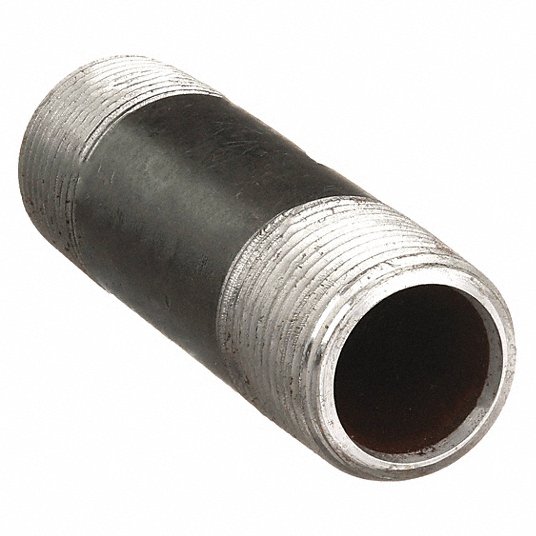

Grainger Approved Nipple: 1Inch, Male, NPT, Schedule 80 Steel, 2 1/2Inch L, Threaded on Both Ends 1LMJ4
15
22
Nipple
Split in 4 payments of 3.72
monthly without fees , learn more
Split it into 4 payments of 3.72
interest-free , learn more
Features
- This Grainger Approved nipple features a seamless construction that provides excellent protection against leaks.
- Thicker walls allow use in higher-pressure applications than Schedule 40 nipples.
- For use in high-pressure applications with air, water, oil, natural gas, and steam.
- Manufactured per ASTM A733 with NPT threads per ASME B1.20.1 and material per ASTM A106.
-
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
|---|---|
| Finish | Coating / Black |
| Fitting Compatibility | Schedule 80 |
| Material | Steel |
| Maximum Operating Pressure | 2000 psi @ 150 Degrees F |
| Maximum Steam Pressure | 300 psi @ 550 Degrees F |
| Metal Pipe Construction | Seamless |
| Nominal Pipe Size | 1 in |
| Outside Diameter | 1 5/16 in |
| Overall Length | 2 1/2 in |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ANSI/ASME B1.20.1, ASTM A106, ASTM A733 |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.172 in |
| Weight | 0.169 KG |
| ID | 1095873 |
