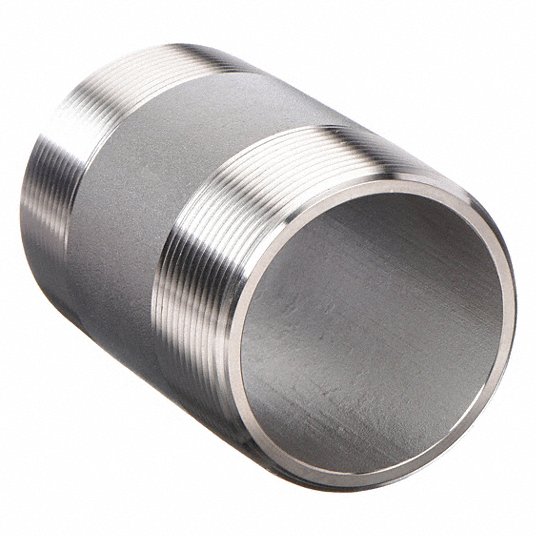

Grainger Approved Nipple: 3/4Inch Nominal Pipe Size, 304 Stainless Steel, 2 1/2Inch Overall Length, Threaded on Both Ends 4TNU6
29
41
Nipple
Split in 4 payments of 7.04
monthly without fees , learn more
Split it into 4 payments of 7.04
interest-free , learn more
Features
- Application: Air, Natural Gas, Propane, Steam, Water
| Fitting Compatibility | Schedule 80 |
|---|---|
| Gravity Flow | No |
| Inside Diameter | 3/4 in |
| Material | Stainless Steel |
| Material Grade | 304 |
| Maximum Operating Pressure | 2828 psi @ 650 Degrees F |
| Maximum Operating Temperature | 650 Degrees F |
| Metal Pipe Construction | Seamless |
| Minimum Operating Temperature | -20 Degrees F |
| Nominal Pipe Size | 3/4 in |
| Outside Diameter | 1 1/16 in |
| Overall Length | 2 1/2 in |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASME B1.20.1, ASTM A312, ASTM A733 |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.138 in |
| Weight | 0.34 KG |
| ID | 1492078 |
