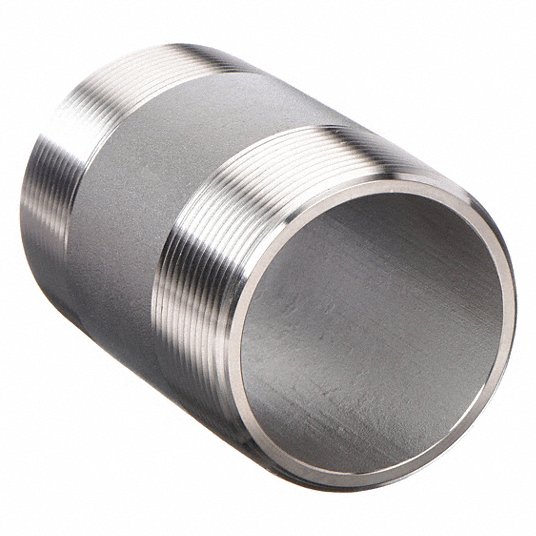

Grainger Approved Nipple, 304 Stainless Steel, 1/2Inch Nominal Pipe Size, 4Inch Overall Lg, Threaded on Both Ends 4TNX5
33
47
Nipple
Split in 4 payments of 8.21
monthly without fees , learn more
Split it into 4 payments of 8.21
interest-free , learn more
Features
- Nipple, 304 Stainless Steel, 1/2 in Nominal Pipe Size, 4 in Overall Lg, Threaded on Both Ends.
- Application: Air, Natural Gas, Propane, Steam, Water.
| Fitting Compatibility | Schedule 80 |
|---|---|
| Inside Diameter | 9/16 in |
| Material | Stainless Steel |
| Material Grade | 304 |
| Maximum Operating Pressure | 3347 psi |
| Maximum Operating Temperature | 650 Degrees F |
| Metal Pipe Construction | Seamless |
| Minimum Operating Temperature | -20 Degrees F |
| Nominal Pipe Size | 1/2 in |
| Outside Diameter | 13/16 in |
| Overall Length | 4 in |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASME B1.20.1, ASTM A312, ASTM A733 |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.13 in |
| Weight | 0.22 KG |
| ID | 1492979 |
