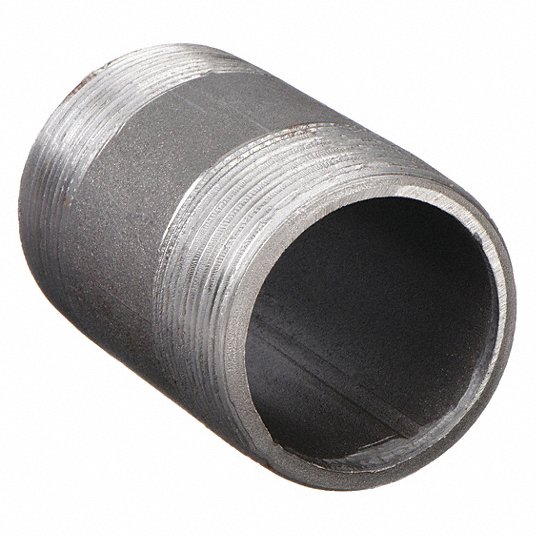

Grainger Approved Nipple, Black Steel, 1Inch Nominal Pipe Size, 2Inch Overall Lg, Threaded on Both Ends, Schedule 80 40602
8
12
Nipple
Split in 4 payments of 1.97
monthly without fees , learn more
Split it into 4 payments of 1.97
interest-free , learn more
- Max. pressure: 300 psi WOG at 550°F - Extra-heavy nipples handle higher pressures and more rugged service. NPT threads. - For use in air, water, oil, and gas applications. - Maximum pressure in accordance with ASME B31.3 Process Piping Code. Meet ANSI/ASME B1.20.1 and ASTM A-53, A733.
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
|---|---|
| Finish | Coating / Black |
| Fitting Compatibility | Class 300 |
| Inside Diameter | 1 in |
| Material | Steel |
| Material Grade | Grade B |
| Maximum Operating Pressure | 300 psi @ 550 Degrees F |
| Maximum Operating Temperature | 600 Degrees F |
| Maximum Steam Pressure | 2281 psi @ 650 Degrees F |
| Metal Pipe Construction | Welded |
| Minimum Operating Temperature | -20 Degrees F |
| Nominal Pipe Size | 1 in |
| Outside Diameter | 1 5/16 in |
| Overall Length | 2 in |
| Pipe Weld Type | Electric Resistance Weld |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASTM A53 Type E Grade B |
| Thread Configuration | Threaded on Both Ends |
| Weight | 0.13 KG |
| ID | 1099552 |
