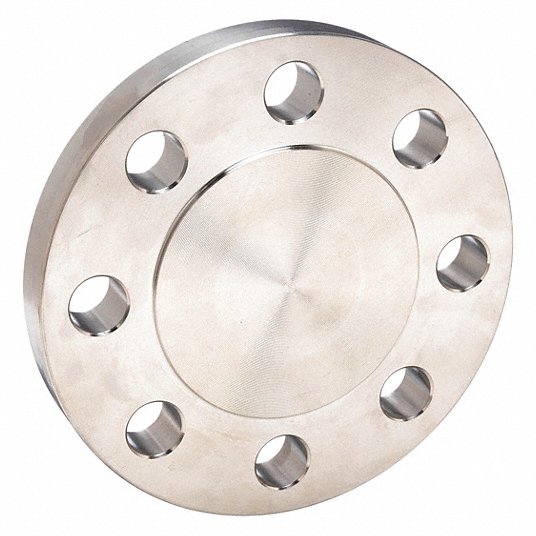

Grainger Approved Pipe Flange, Blind Flange, 304/304L Stainless Steel, 2Inch Pipe Size, 6 1/2Inch Flange Outside Dia S1034BL020N
171
243
Pipe Flange
Split in 4 payments of 42.51
monthly without fees , learn more
Split it into 4 payments of 42.51
interest-free , learn more
Use to blank off pipelines, valves, and pumps, or as an inspection cover.
- Suitable for use with Schedule 40 or 80 stainless steel pipe, in applications with air, water, natural gas, and steam.
| Connection Surface | Raised Face |
|---|---|
| Nominal Pipe Size | 2 in |
| Fitting Connection Type | Flanged x Blind |
| Flange Outside Diameter | 6 1/2 in |
| Flange Thickness | 7/8 in |
| Overall Length | 7/8 in |
| Pipe Fitting Material | 304/304L Stainless Steel, Stainless Steel |
| Material Grade | 304/304L |
| Class | Class 300 |
| Maximum Operating Pressure | 720 psi |
| Max. Steam Pressure | 300 psi |
| Number of Bolt Holes | 8 |
| Bolt Circle Diameter | 5 in |
| Bolt Hole Diameter | 3/4 in |
| Standards | ASME A182, ASME B16.5 |
| Weight | 3.3 KG |
| ID | 1000334 |
