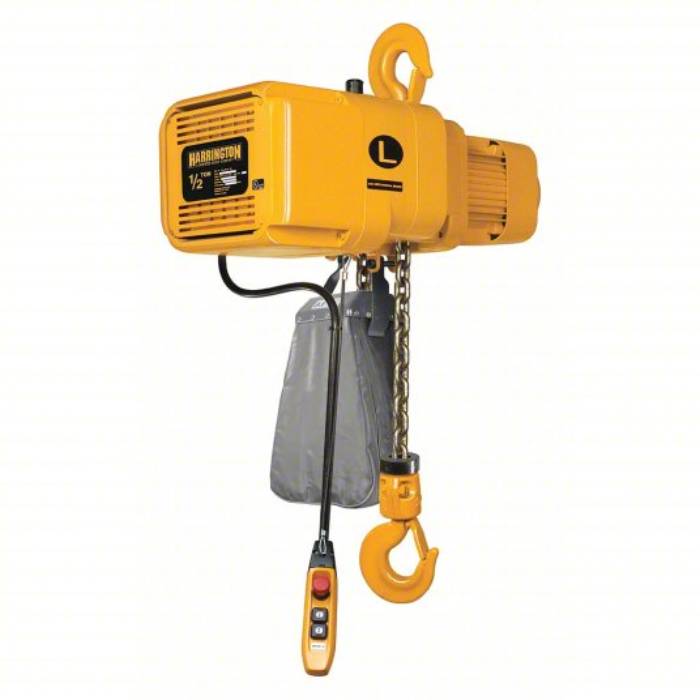

Harrington Electric Chain Hoist, 1,000 lb Load Capacity, 2 Speeds, 230 Volt, 15/2.5 fpm, 0.75 hp, H4 NER005LD-10
8,649
12,356
Electric Chain Hoist
HARRINGTON NER005LD-10 Electric Chain Hoist Features
- 10 ft. Lift Electric Hook Mounted Chain Hoists are operated by an electric motor.
- H4 hoists are suitable for high-volume handling in steel warehouses, machine shops, fabricating plants and mills, and foundries.
- They are also suitable for manual or automatic cycling operations in heat treating and plating.
| Load Capacity | 1,000 lb |
|---|---|
| Hoist Lift | 10 ft |
| Classification | H4 |
| Number of Speeds | 2 |
| Lift Speed | 15/2.5 fpm |
| Motor HP | 0.75 hp |
| Voltage | 230 |
| Phase | 3 |
| Min. Between Hooks | 14-5/8 inch |
| Amps @ Low Volts | 3.6 A |
| Housing Depth | 7-1/2 inch |
| Housing Length | 22-7/16 inch |
| Housing Width | 8-19/32 inch |
| Reeving | 1 |
| Brake | DC Current |
| Clutch | Friction |
| Control | 110V Push Button Control Pendant |
| Control Cord | 6 ft |
| Color | Yellow |
| Hz | 60 |
| Lubrication | Oil Bath |
| Thermal Protection | Yes |
| Standards | ASME B30.16; ASME HST-1M; NFPA 70; RoHS; UL1340 |
| Includes | Chain Container; Quick Disconnect Plugs On Pendant and Power Cord |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 32.2 KG |
| ID | 980754 |
