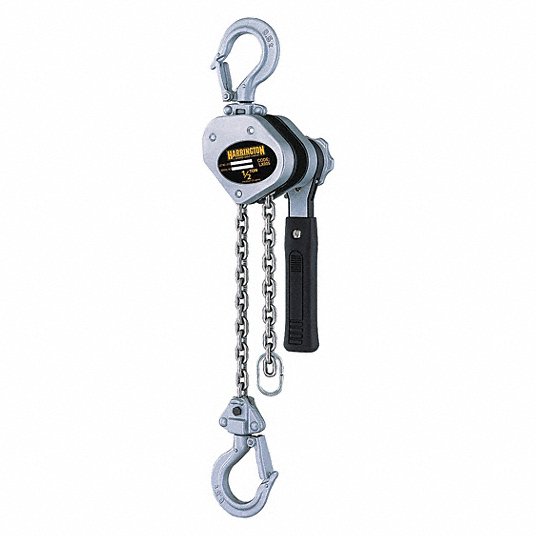

Harrington Lever Chain Hoist, 1,000 lb Load Capacity, 5 ft Hoist Lift, 1 in Hook Opening4ZY93 LX005-5
709
1,012
Lever Chain Hoist
Split in 4 payments of 177.10
monthly without fees , learn more
Split it into 4 payments of 177.10
interest-free , learn more
Mini Ratchet 500- and 1000-Lb. Chain Pullers
- Weston-type load brake Single-step reduction gearing Nickel-plated Grade 100 load chain Load-tested Meet ANSI/ASME B30.21 standards
- Designed for fine adjustment of load tension.
- Low pulling force is required for operation.
- Strong hook latches include notched tip
| Load Capacity | 1,000 lb |
|---|---|
| Hoist Lift | 5 ft |
| Min. Between Hooks | 9 3/4 in |
| Pull to Lift Rated Load | 62 lb |
| Reeving | 1 |
| Lever Length | 7 1/8 in |
| Hook Opening | 1 in |
| Brake | Weston Style Load Brake |
| Chain | Manganese |
| Chain Length | 6 ft |
| Finish | Electrostatic Enamel |
| Standards | ANSI/ASME B30.21 |
| Includes | Safety Latch Hooks |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 3.1 KG |
| ID | 1001313 |
