Grainger Approved Hex Reducing Bushing, 316 Stainless Steel, 1 Inch x 1/2 Inch Fitting Pipe Size, Male NPT x Female NPT 1LUP6
10
14

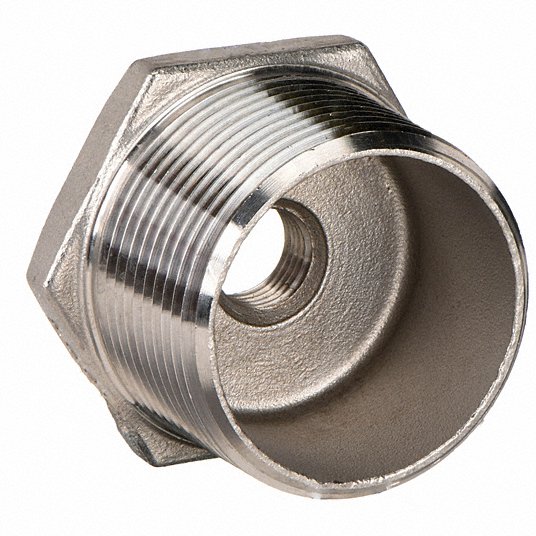

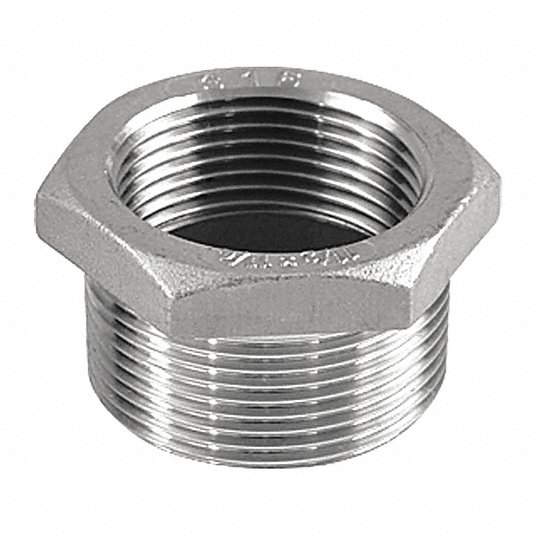

Hex Reducing Bushing
Features
- This GRAINGER APPROVED hex reducing bushing is designed with 316 stainless steel featuring a higher nickel content for better corrosion resistance.
- Compatible with stainless steel Schedule 40 pipe
- For use with air, water, oil, natural gas, and steam
| Pipe Fitting Material | 316 Stainless Steel, Stainless Steel |
|---|---|
| Material Grade | 316 |
| Class | Class 150 |
| For Pipe Schedule | 40 |
| Fitting Side A Nominal Pipe Size | 1 in |
| Fitting Side A Gender | Male |
| Fitting Side A Type | NPT |
| Fitting Side A Outside Diameter | 1 in |
| Fitting Side A Pipe Threading | 14 |
| Fitting Side B Nominal Pipe Size | 1/2 in |
| Fitting Side B Gender | Female |
| Fitting Side B Type | NPT |
| Fitting Side B Outside Diameter | 1/2 in |
| Fitting Side B Pipe Threading | 14 |
| Maximum Operating Pressure | 300 psi |
| Max. Steam Pressure | 150 psi |
| Includes Pre-Applied Thread Sealant | No |
| Includes Seal | No |
| Overall Length | 32.5 mm |
| Hex Size | 38 mm |
| Color | Silver |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Potable Water, Steam |
| Standards | ASME B1.20.1, ASTM A351, MSS SP-114 |
| Weight | 0.099 KG |
| ID | 1015399 |
