Hikoki Cordless Hammer Drill, 18V Brushless, 140 Nm Torque, 2-Speed, 30,000 BPM, 2.66 kg DV18DCWHZ
- 18V brushless motor for high efficiency and durability
- 140 Nm torque for demanding fastening and drilling tasks
- Reactive Force Control (RFC) for improved user safety
- Two-speed gearbox for versatility across applications
- Compact body for access to tight working areas

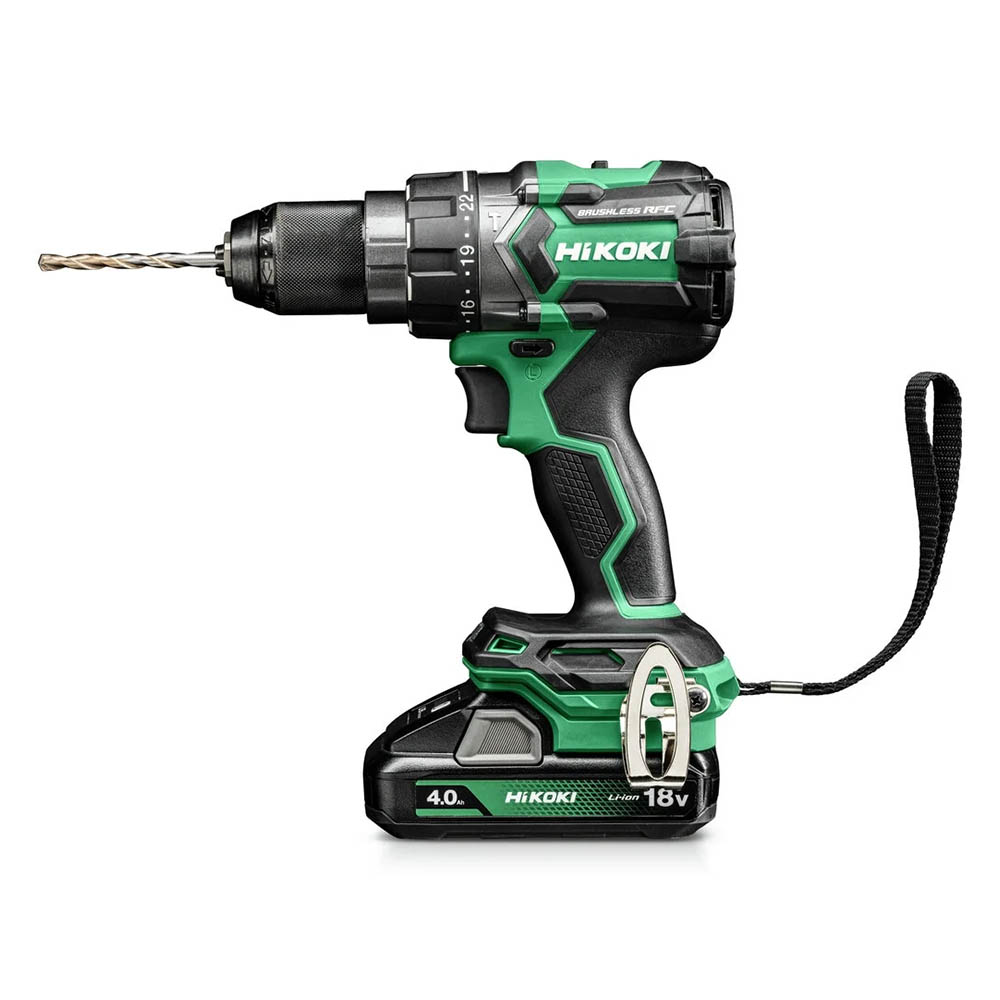

Hikoki Cordless Hammer Drill DV18DCWHZ
Hikoki Cordless Hammer Drill, DV18DCWHZ, is engineered to deliver powerful drilling and fastening performance for demanding professional applications. Powered by an 18V brushless motor, this Cordless Hammer Drill provides up to 140 Nm of tightening torque, ensuring efficient operation across a wide range of materials. Advanced technologies such as Reactive Force Control (RFC) and constant speed control enhance safety and maintain stable performance even under heavy load conditions.
Its compact body design allows easier handling in confined spaces, while the durable aluminium gear housing improves strength and reliability for tough working environments. The tool also features a metal keyless chuck with carbide inserts for secure bit retention and an adjustable side handle for improved control and flexibility during operation.
Hikoki Cordless Hammer Drill Features
- High Torque Output
Delivers up to 140 Nm torque for heavy-duty drilling and fastening tasks.
- Brushless Motor Technology
Provides efficient power delivery with reduced wear and extended service life.
- Reactive Force Control (RFC)
Automatically stops the motor during overload to reduce kickback and improve user safety.

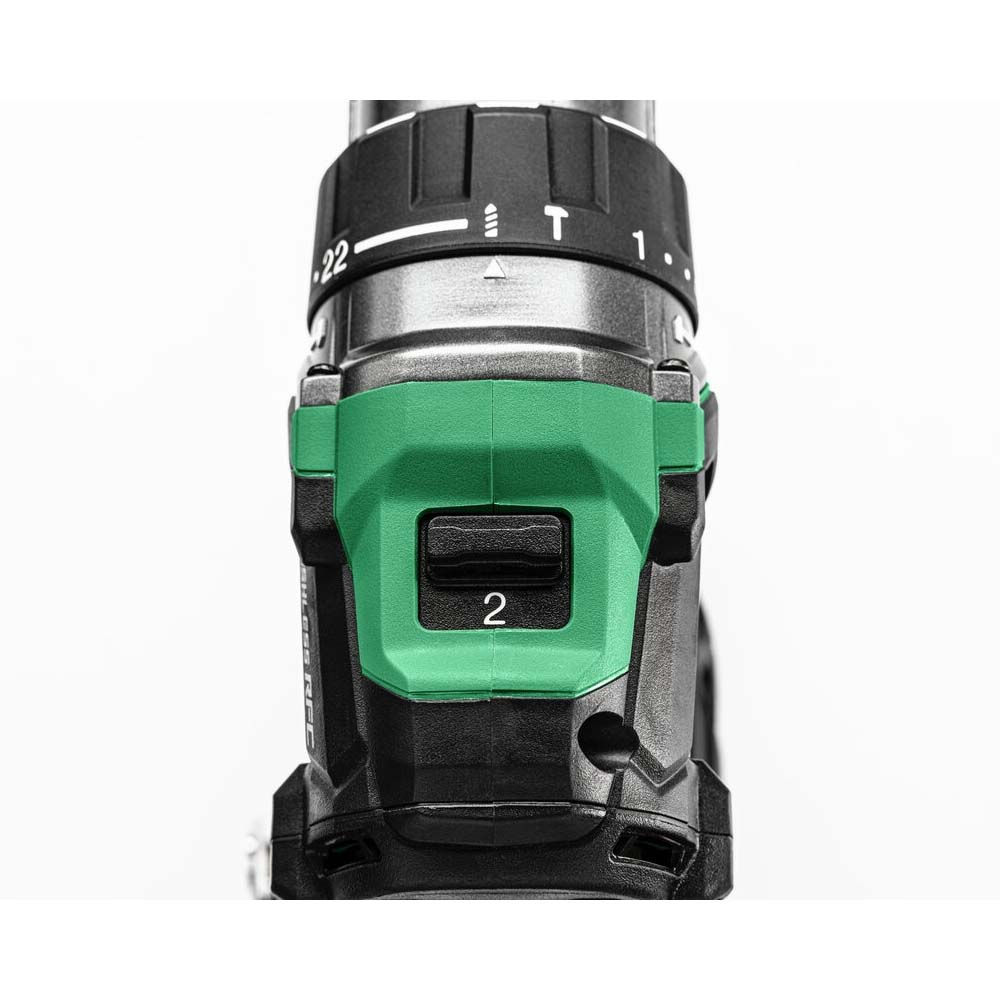

- Two-Speed Mechanical System
Offers speed ranges of 0–500 and 0–2000 rpm for precision and power applications.
- High Impact Rate
Reaches up to 30,000 impacts per minute for efficient masonry drilling performance.
- Constant Speed Control
Maintains stable output and performance under heavy working conditions.
- Advanced Cooling System
Improved airflow and heat sink design help maintain efficiency during prolonged operation.
- Aluminium Gear Housing
Enhances durability and rigidity in demanding jobsite environments.

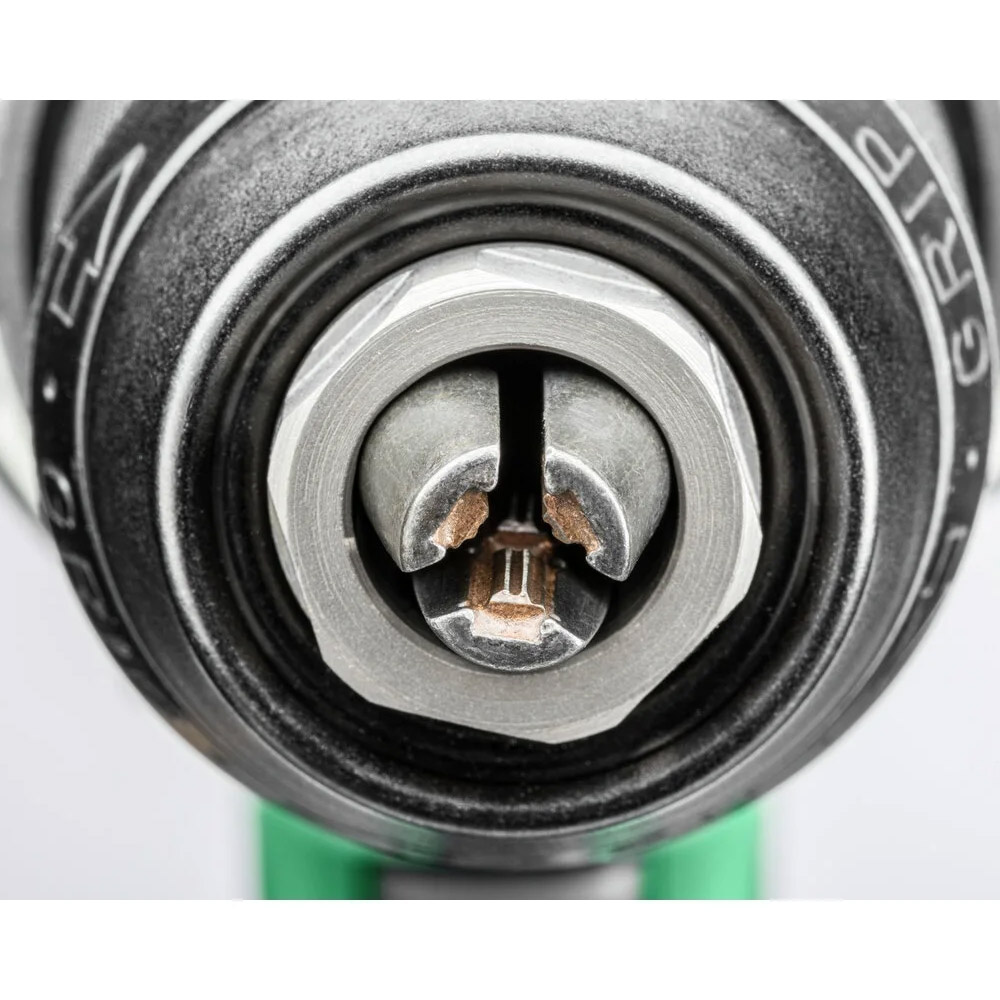

- Metal Keyless Chuck
Equipped with carbide inserts for strong and secure bit retention.

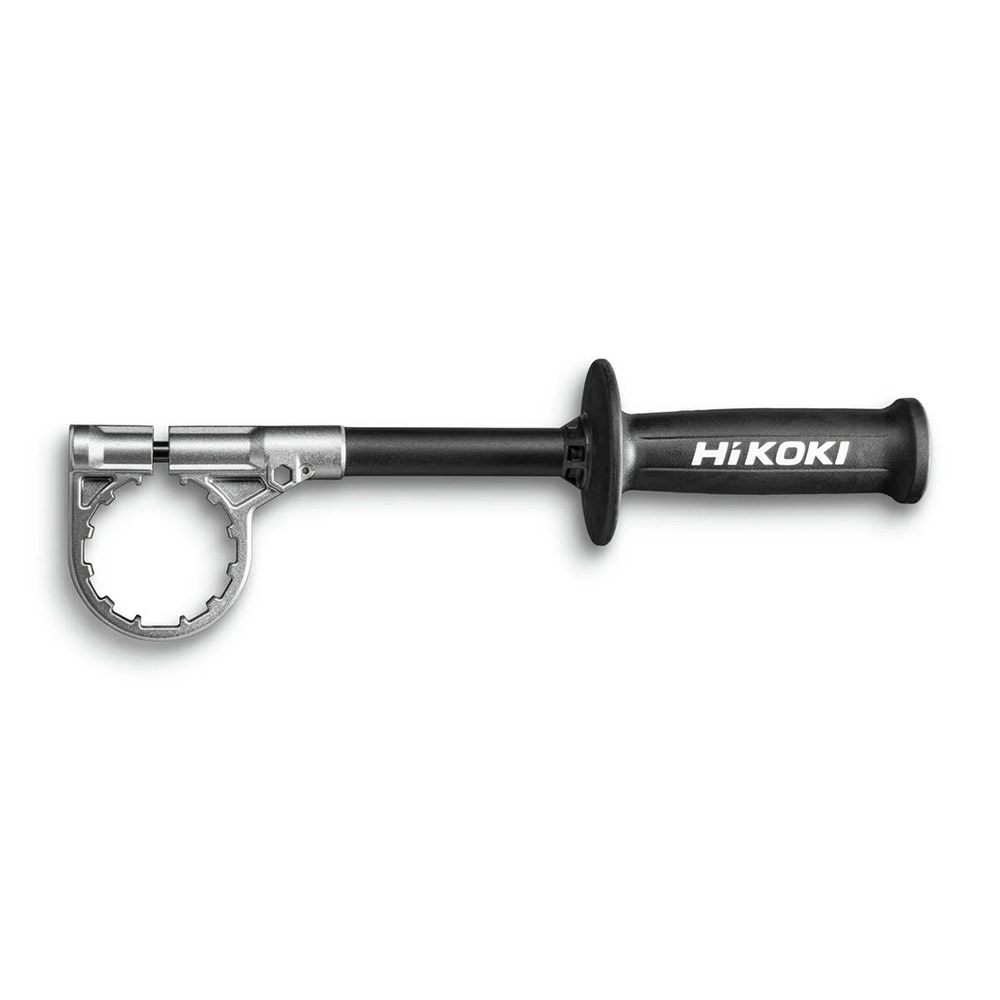

- Adjustable Side Handle
Rotatable in 11 positions to improve handling and operational flexibility.
Hikoki Cordless Hammer Drill Application Fields
- Masonry Drilling
Suitable for drilling into masonry materials up to 22 mm.
- Metal Drilling
Supports drilling into steel and aluminium up to 16 mm.
- Wood Drilling
Capable of drilling into wood up to 102 mm.

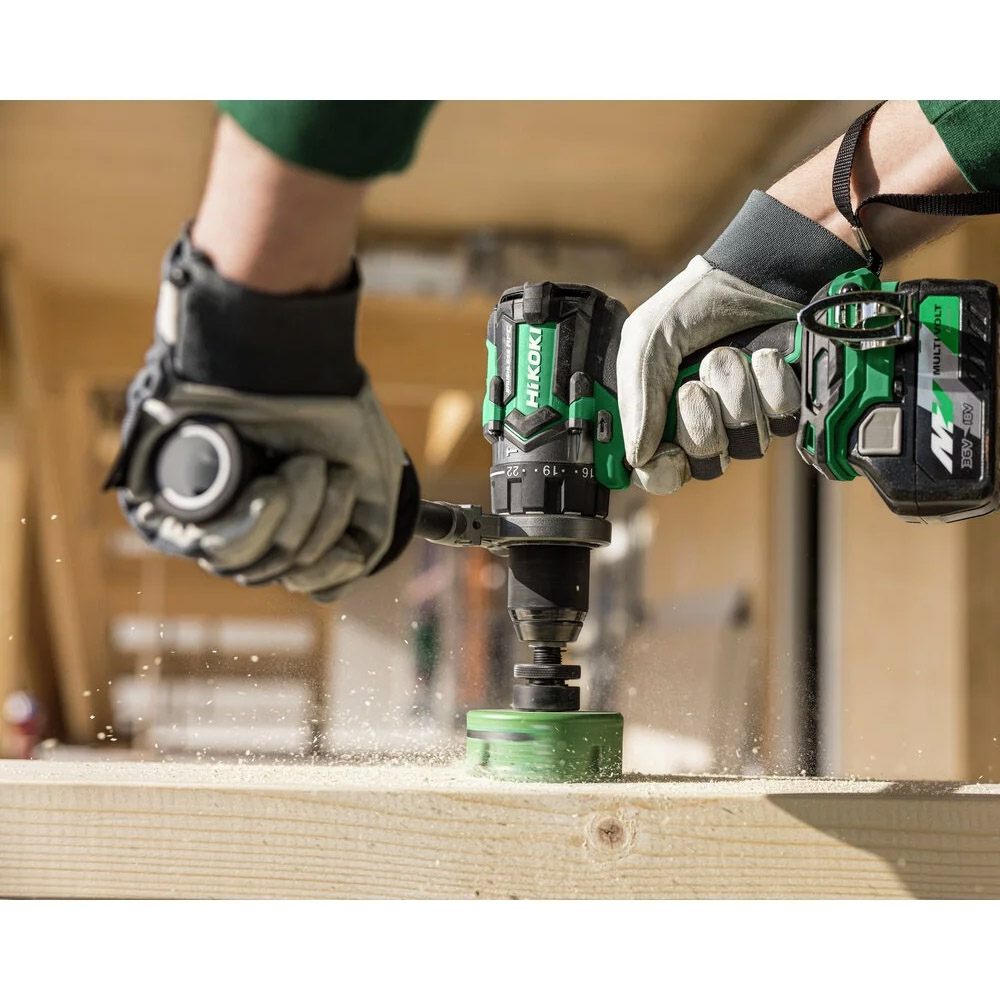

- Hole Saw Applications
Supports hole saw operations up to 200 mm diameter.
- Heavy-Duty Fastening
Ideal for demanding fastening applications requiring high torque output.
| Battery voltage | 18 V |
|---|---|
| No load speed | 0–500/0–2000 /min |
| Impact rate (high speed) | 0 – 30000 /min |
| Max. torque hard (1st gear) | 140 Nm |
| Max. torque soft (1st gear) | 70 Nm |
| Torque levels | 22 |
| Drill diameter masonry | 22 mm |
| Drill diameter aluminium | 16 mm |
| Drill diameter steel | 16 mm |
| Drill diameter wood | 102 mm |
| Hole saw diameter | 200 mm |
| Weight (without battery pack) | 2.10 kg |
| Weight (with battery pack) | 2.66 kg |
| Tool length | 190 mm |
| Tool width | 89 mm |
| Tool height | 252 mm |
| Application | Drilling into Metal |
| Vibration | 2.1 m/sec² |
| Vibration uncertainty K | 1.5 m/sec² |
| Application | Impact Drilling into Concrete |
| Vibration | 10.2 m/sec² |
| Vibration uncertainty K | 1.5 m/sec² |
| Emission sound pressure | 93 dB |
| Emission sound power | 101 dB |
| Emission uncertainty KpA | 5 dB |
| Chuck type | Keyless Chuck |
| Right- | left rotation | Forward / reverse rotation / Yes |
| Spindle lock | Yes |
| LED light | Yes |
| Weight | 2.66 KG |
| ID | 2783204 |
