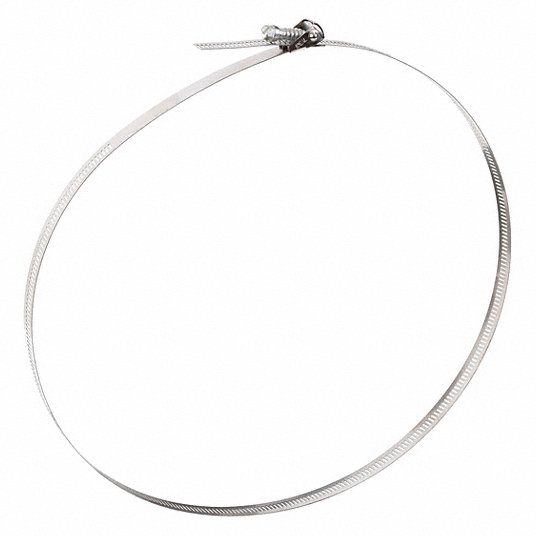

Worm Gear Hose Clamp, Quick Release, 9/16 inch Hose Clamp Band Width, 10 Packet 56188
93
132
Worm Gear Hose Clamp
Split in 4 payments of 23.08
monthly without fees , learn more
Split it into 4 payments of 23.08
interest-free , learn more
Features
- For closed-system applications.
- Use this reusable worm-drive hose clamp in applications where the clamp must be disengaged to be applied.
| Clamp Type | Quick Release |
|---|---|
| Min. Clamp Dia. | 2 inch |
| Max. Clamp Dia. | 12 1/4 inch |
| SAE Number | 188 |
| Hose Clamp Band Width | 9/16 inch |
| Thickness | 0.022 inch |
| Screw Size | 5/16 inch |
| Hose Clamp Band Material | 201/301 Stainless Steel |
| Hose Clamp Screw Material | Plated Carbon Steel |
| Hose Clamp Housing Material | 201/301 Stainless Steel |
| Bridge Material | Plated Carbon Steel |
| Hose Clamp Install Torque | 30 inch-lb |
| Band Slots | Rectangular |
| Metric Dia. Min. | 60 mm |
| Metric Dia. Max. | 311 mm |
| Weight | 0.45 KG |
| ID | 1809148 |
