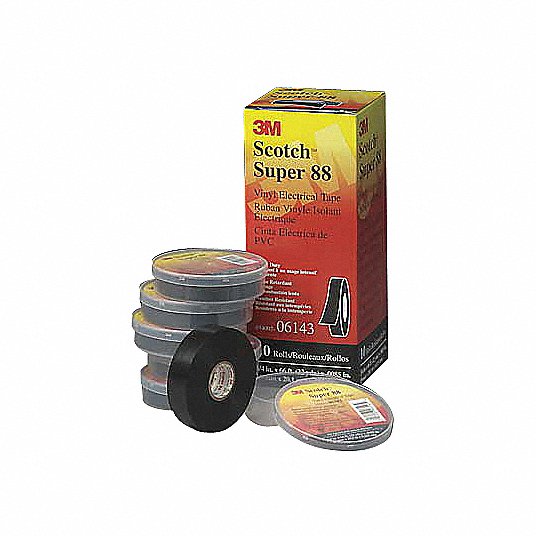

3M Insulating Electrical Tape, Gen Purpose, Vinyl, 2 inch x 108 ft, Black, 12 PK 88-Super-2x36YD
1,793
Insulating Electrical Tape
Features
- Flame-retardant and resists cold temperatures, weather, moisture, alkalis, acids, and corrosion.
- Provides faster build up and better mechanical protection.
| Tape Sub-Type | General Purpose |
|---|---|
| Tape Backing Material | Vinyl |
| Tape Adhesive Material | Rubber |
| Imperial Tape Width | 2 in |
| Imperial Tape Length | 108 ft |
| Tape Thickness | 8.5 mil |
| Tape Brand | 3M(TM) |
| Sub-Brand | Scotch(R) |
| Series | Super 88 |
| Tape Color | Black |
| Minimum Tape Performance Temperature | 0 Degrees F |
| Maximum Tape Performance Temperature | 220 Degrees F |
| Voltage Rating | 600 V |
| Product Form | Continuous Roll |
| Tape Adhesive Format | Single-Sided |
| Specifications Met | ASTM, CSA, RoHS, UL |
| Tape Resistance Properties | Abrasion-Resistant, Moisture-Resistant, Solvent-Resistant, UV-Resistant |
| Self-extinguishing | Yes |
| Tape Properties | Flame-Retardant |
| Adhesive Properties | Pressure Sensitive Adhesive |
| Environment | Indoor and Outdoor |
| Adhesion to Steel | 60 oz/in |
| Tape Tensile Strength | 20 lb/in |
| Tape Conformability | Conformable at low temperature |
| Breaking Strength | 20 lb/in |
| Elongation | 250 % |
| Breakdown Voltage | 10,000 V |
| Dielectric Strength | 1,250 V/mil |
| Insulation Resistance | 1.00 x 10^6 megaohm |
| Tape Backing Construction | Film |
| Tape Type | Film |
| Standards | ASTM D1000, CSA Certified, RoHS 2002/95/EC, UL 510 |
| Metric Tape Length | 32.9 m |
| Metric Tape Width | 50 mm |
| Printed Message | Unprinted |
| Weight | 6.35 KG |
| Code | BD-2FYW1 |
| ID | 988848 |
