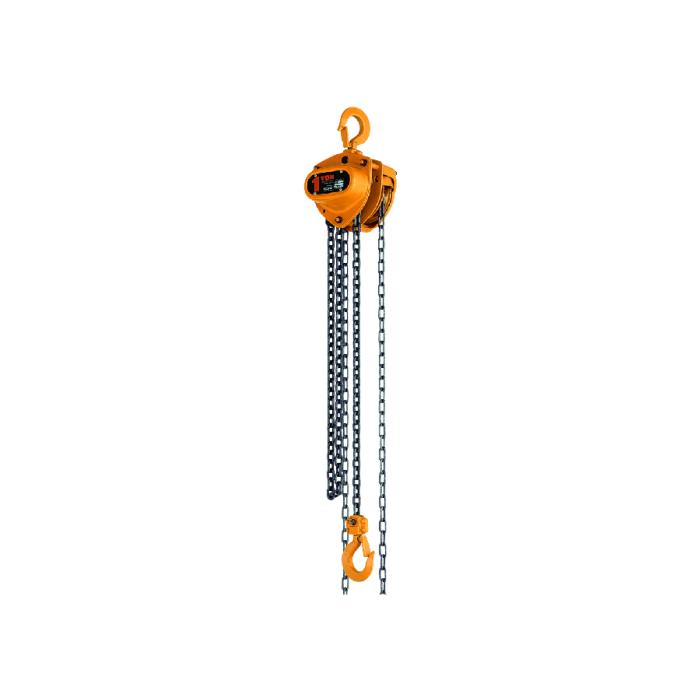

Kito MANUAL CHAIN HOIST 1/2 TON, Made In Japan CB005
880
Chain hoist
- Minimum manual power for operation
- Hooks for easy work
- Ultra strong load chain
- Double enclosure to keep out rain water and dust
- Gear case and hand wheel cover resistant to external shocks
Features
- CHAIN HOIST MANUAL from KITO, 500KG, X 3.0M, WITH HC-3.0M.
- Double Pawl Spring Mechanism to further increase Sureness In case one pawl spring is damaged, the other maintains functions.
- This mechanism further increases sureness.
- Sure and Reliable Braking Functions (Mechanical Brake) KITO's unique braking mechanism, which has a strong braking power, works instantly when operation is stopped and holds load securely.
- Moreover, it maintains stability and durability.
- Little manual power is needed and smooth operation is always obtained, especially when load is being lowered.
- Stopper Prevents Excessive Lowering Stopper assembly prevents from excessive lowering of load and also keeps load chain from exiting if over lowered.
- When you feel a noticeable increase in pull force to lower load you may realize that you cannot lower load any further.
- Ultra Strong Load Chain Load chains, the other component comprising heart of the chain hoist, are made of an exclusively developed, heat treated special steel alloy.
- Carefully selected special alloy steel is processed entirely at KITO's completely automated production facilities under the most stringent quality control standards.
- All of chains thus produced have a uniformly high breaking stress of 1000N/ mm (100kgf/mm).
- They have excellent quality including toughness and resistance to wear.
- Hooks for Easy Work specially heat treated top and bottom hooks have enough strength and toughness for even hard job.
- The design of the bottom hook, with relatively large dimensions, makes it easy to stabilize load in proper position.
| Model | M3 |
|---|---|
| Capacity (t) | 0.5 |
| Std.Lift (m) | 2.5 |
| Chain Pull to lift full load (n) (kgf) | 235 (24) |
| Chain o'hauled to lift load one meter (m) | 25 |
| Test load (t) | 0.75 |
| Net weight (kg) | 10 |
| Shipping mass (weight) (approx.) (kg) | 10.5 |
| Load chain fall (lines) | 1 |
| Mass (weight) in kg for additional one meter of lift (kg) | 1.5 |
| Weight | 10.5 KG |
| ID | 2193796 |
