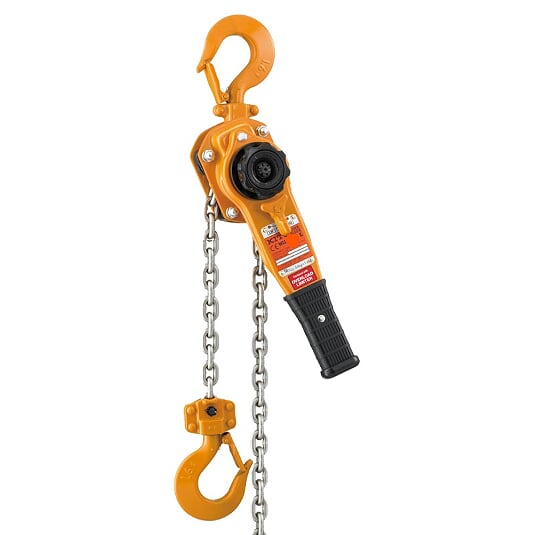

Kito 6.3 TON LEVER HOIST, Made In Japan LB063
3,357
LEVER HOIST
Split in 4 payments of 839.21
monthly without fees , learn more
Split it into 4 payments of 839.21
interest-free , learn more
LEVER HOIST from KITO, 6.3TON X 1.5MTR
- Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces
- Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear
- High-strength frame High grade alloy steel with solid construction
- Lever Handle with A new shape and thicker material creates a very strong lever handle
- Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure
- Hooks are forged from high strength alloy steel allowing the larger capacities – 21/2 through 9 ton – to use hooks that are smaller and lighter
- Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier
| Rated load (W.L.L.) | 6.3 |
|---|---|
| Standard lift (m) | 1.5 |
| Hand-pull to lift full load (n) (kg) | 372 (38) |
| Load chain diameter x chain fall (mm) | 10x2 |
| Test load (kg) | 7900 |
| Mass (Net weight) * (kg) | 26 |
| Shipping weight (Approx.)(kg) | 27 |
| Weight for additional one meter of lift (kg) | 4.7 |
| Dimensions (mm) | |
| A | 190 |
| B | 217 |
| C | 540 |
| D | 415 |
| E | 112 |
| G | 50 |
| S | 60 |
| T | 34 |
| Weight | 27 KG |
| ID | 2179360 |
