Out of Stock

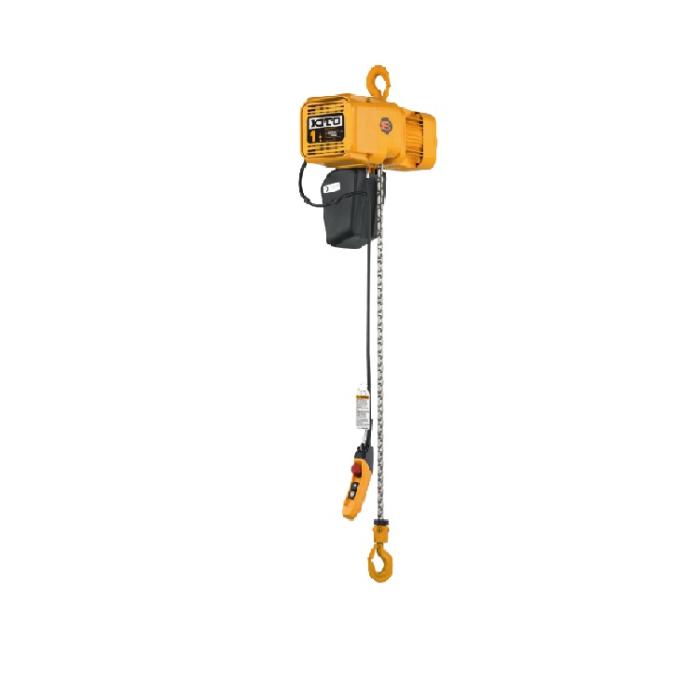

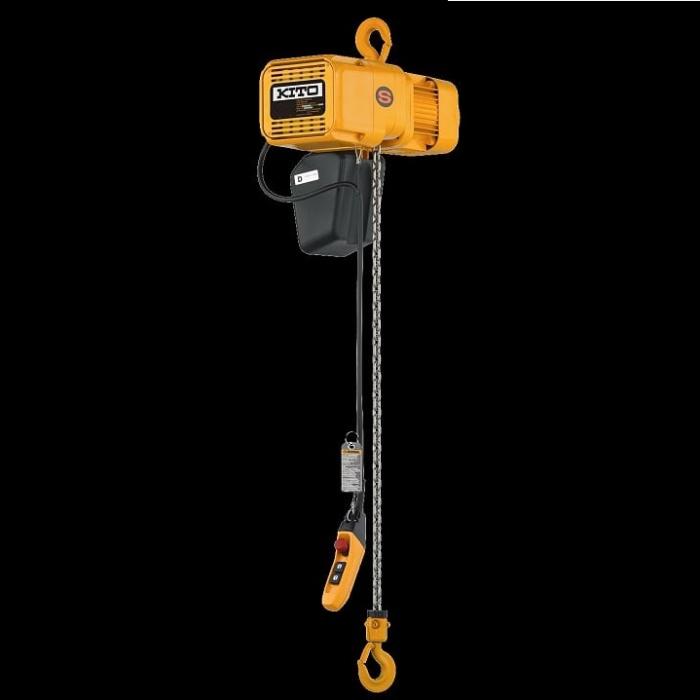

Kito Electric Chain Hoist Hook, 3 Phase 380 V 60HZ, 1 Ton, With Chain For 3 Meters Lifting Height and Chain Bucket, Made in Japan ER2-010S/380
9,176
Electric Chain Hoist Hook
- Smooth & Ergonomic Operation
- Reliable Safety
- Enhanced Durability
- Environmentally Friendly
- Easier Maintenance
CHAIN HOIST from KITO, 1 TON 380V,3PH – Five meters of power supply cable as standard accompanies – Optional length of lift, push button cord and power supply cable besides standard is available on your request – Extending the load chain is prohibited with additional links – Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
| Capacity(t) | 1 |
|---|---|
| Hoist Body | D |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 2.5 |
| Lifting Motor | |
| Output (kW) | 1.8 |
| Rating (%ED) | 60 |
| Lifting Speed (m | min) / 50Hz: 7.1 / 60Hz: 8.5 |
| Load Chain: Diameter (mm) x Chain Falls | 7.7 x 1 |
| Classification ISO | FEM/ASME: M5/2m/H4 |
| Test Load (t) | 1.25 |
| Net Weight (kg) | 54 |
| Additional Weight per 1m Lift (kg) | 1.33 |
| Weight | 54 KG |
| Code | 40-01-068 |
| ID | 2183450 |
