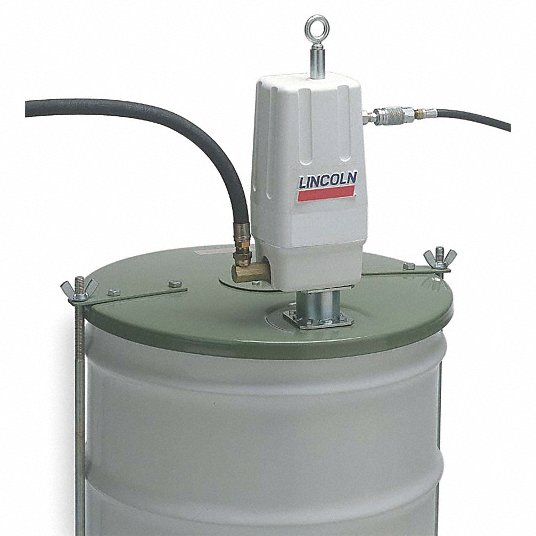

Lincoln Air Operated Drum Pump, Unmetered Dispensing with Manual Shut-Off, For Container Type Drum 2535
10,464
14,949
Air Operated Drum Pump
This Oil Pump Transfer System includes shut-off valve and roll-around base.
- Fast, clean refilling using efficient Lincoln air-operated pumps
- 5:1 pump ratios delivers gear oil with minimum consumption
- Air expeller built into pump tube prevents air from registering through meter
- Large replaceable swivel casters provide ease of maneuverability (mobile models)
- Baked on enamel finish retards rust and corrosion
| Pump Package Type | Unmetered Dispensing with Manual Shut-Off |
|---|---|
| Air Inlet Size | 1/4 in FNPT |
| For Container Size | 55 gal |
| For Container Type | Drum |
| Air Consumption | 14 cfm |
| Max. Flow Rate | 6 gpm |
| Max. Oil Flow | 6 gpm |
| Discharge Connection Type | FNPT |
| Discharge Tube Outlet ID | 1/2 in |
| Discharge Tube Outlet OD | 13/16 in |
| Min. Air Pressure | 40 psi |
| Max. Air Pressure | 200 psi |
| Compatible Chemicals | Automatic Transmission Fluid, Gear Lube, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic) |
| Not Recommended Chemicals | Diesel Fuel, Grease, Kerosene, Motor Oil |
| Ratio | 5:1 |
| Max. Outlet Pressure | 1,000 psi |
| Min. Fluid Temp. | 30 Degrees F |
| Max. Fluid Temp. | 120 Degrees F |
| Seal Material | Buna-N |
| Power Source | Air |
| Pump Connection ID | 1/2 in |
| Pump Connection Type | FNPT |
| Includes Discharge Hose | Yes |
| Hose Inside Dia. | 1/2 in |
| Hose Outside Dia. | 13/16 in |
| Housing Material - Pumps | Steel |
| Includes Suction Tube | Yes |
| Suction Tube Length | 7 1/2 in |
| Suction Tube Material | Steel |
| Suction Tube OD | 1 21/32 in |
| Includes Nozzle | Yes |
| Nozzle Operation | Manual |
| Nozzle Material | Steel |
| Self-Priming | Yes |
| Includes | Roll Around Base, Shut Off Valve |
| Wetted Materials | Brass, Buna-N, Steel |
| For Media Type | Automatic Transmission Fluid, Gear Lube, Hydraulic Oil |
| Weight | 24 KG |
| ID | 988721 |
