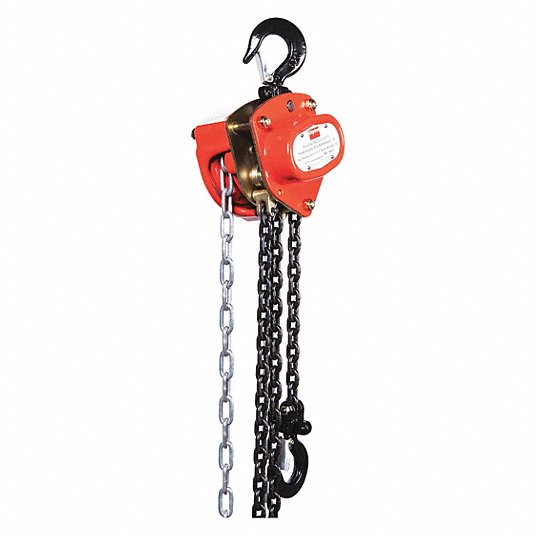

Dayton Manual Chain Hoist, 1,000 lb Load Capacity, 10 ft Hoist Lift, 3/4 in Hook Opening 1VW51
797
Manual Chain Hoist
Features
- Featuring a compact design, this low-headroom chain hoist is ideal for use in small facilities.
- It features through-hardened chains, along with heat-treated spur gearing for durability in demanding environments.
- Bearing-mounted pinions, along with lubricated roller bearings and bushings, help to facilitate smooth operation.
- Hand chains hang 2 ft. shorter than lift.
| Load Capacity | 1,000 lb |
|---|---|
| Hoist Lift | 10 ft |
| Min. Between Hooks | 11 1/2 in |
| Pull to Lift Rated Load | 58 lb |
| Hook Opening | 3/4 in |
| Housing Length | 5 1/4 in |
| Housing Width | 5 1/4 in |
| Housing Depth | 5 in |
| Brake | Weston Style, Double Disc Brake |
| Standards | ANSI/ASME B30.16, EN13157 |
| Includes | Safety Latch Hooks |
| Hoist Overload Protection | No |
| Manufacturers Warranty Length | 1 yr |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 9.97 KG |
| Code | BD-1VW51 |
| ID | 984256 |
