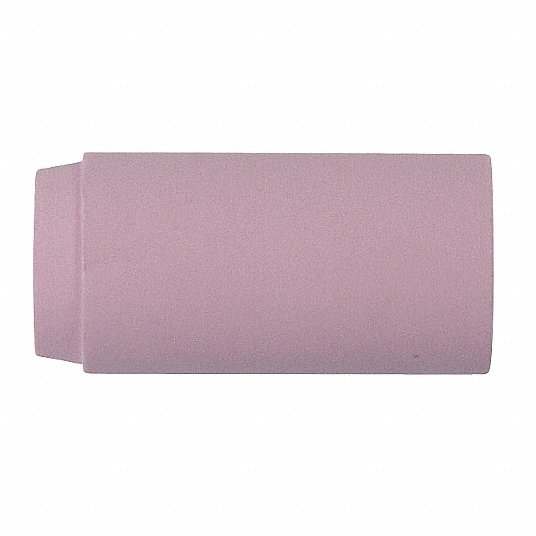

Miller Electric Nozzle, Alumina, No. 6, Std, , 10 PK 13N10
55
79
Nozzle
Split in 4 payments of 13.66
monthly without fees , learn more
Split it into 4 payments of 13.66
interest-free , learn more
This alumina nozzle is designed for use in lower amperage applications.
| Compatible with Model | 17, 17F, 17FV, 17FVB, 17HP, 17HPV, 17V, 18, 18-90, 18HP, 18P, 18V, 20, 20F, 20H-320-25R, 20HP, 20P, 22A, 22B, 25, 26, 26F, 26FV, 26FVB, 26HP, 26HPV, 26V, 301251, 301253, 9, 9F, 9FVB, 9HP, 9P, 9V, 9VB, CS310A, HW-17, HW-17F, HW-17R, HW-18, HW-18R, HW-20, HW-20R, HW-25, HW-26, HW-26F, HW-26R, HW-9, HW-9F, HW-9R, PTA-17, PTA-17F, PTA-17FV, PTA-17V, PTA-26, PTA-26F, PTA-26FV, PTA-26V, PTA-9, PTA-9F, PTW-18, PTW-20, WP-17, WP-17-PSH, WP-17F, WP-17FV, WP-17V, WP-17V-PSH, WP-18, WP-18SC, WP-18V, WP-20, WP-20P, WP-20V, WP-25, WP-9, WP-9F, WP-9FV, WP-9V, WP-R17F, WP-R17FV, WP-R9F, WP-R9FV |
|---|---|
| Compatible with Series | 17, 18, 20, 20H-320, 20P, 22, 25, 26, 9, A-125, A-150, A-200, A-250, HW-17, HW-18, HW-20, HW-25, HW-26, HW-9, PTA-17, PTA-26, PTA-9, PTW-18, PTW-20, W-200, W-225, W-250, W-280, W-310, W-350, W-375, W-410 |
| For Maximum Electrode Diameter | 1 in |
| Material | Alumina |
| Nozzle Nominal Size | No. 6 |
| Reference Number | 13N10 |
| TIG Torch Application | Non-Gas Lens, Stubby Non-Gas Lens |
| Type | Standard Nozzle |
| Welding Processes | TIG Welding (GTAW) |
| Compatible with Brand | Miller |
| Compatible with Grainger Part Number | 48VF53, 48VF60, 6UHL8, 6XXN2, 6XXN3, 6XXN4, 6XXN5, 6XXN6, 6XXN8, 6XXN9, 6XXP0, 6XXP1, 6XXP2, 6XXP3, 6XXP4, 6XXP5, 6XXP6, Not Found |
| Outside Diameter | #6 (3/8 in) |
| Nozzle Length | Standard |
| Sub-Brand | Weldcraft |
| Weight | 0.09 KG |
| ID | 1009468 |
