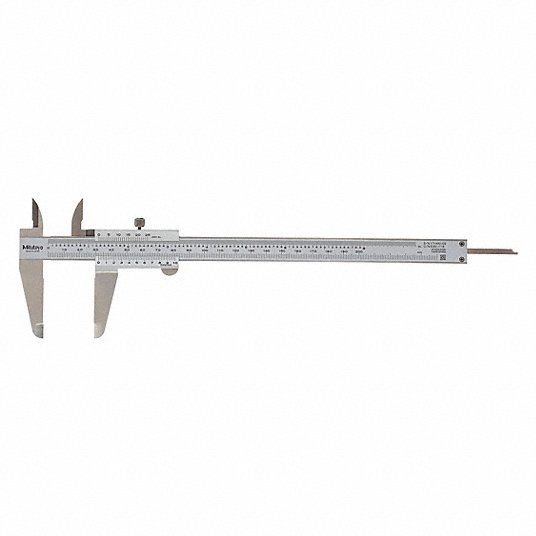

4-Way Vernier Caliper, Range 0 in to 8 in, 0 mm to 203.2 mm, Graduations 0.05 mm 530-118
436
Vernier Caliper
Split in 4 payments of 108.79
monthly without fees , learn more
Split it into 4 payments of 108.79
interest-free , learn more
Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements. - The jaws are used to contact the opposite sides of an object, workpiece, or feature. - Operators read the main and vernier scales and add the values together to determine the reading. - These calipers require expertise to read correctly.
| Range | 0 in to 8 in, 0 mm to 203.2 mm |
|---|---|
| Graduations | 0.05 mm |
| Accuracy | +/-0.03 mm |
| Caliper Material | Stainless Steel |
| Dimension Type | Inch/Metric |
| Graduations - Lower Scale | 0.05 mm |
| Graduations - Upper Scale | 0.05 mm |
| Jaw Actuation Type | Thumb Wheel |
| Jaw Depth | 1 31/32 in |
| Maximum Measurement - Decimal Inch | 8 in |
| Maximum Measurement - Fractional Inch | 8 in |
| Maximum Measurement - mm | 203 mm |
| Measurements | 4-Way |
| Measures Depth | Yes |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | Yes |
| Minimum Measurement - Decimal Inch | 0 in |
| Minimum Measurement - Fractional Inch | 0 in |
| Minimum Measurement - mm | 0 mm |
| Operation Type | Mechanical |

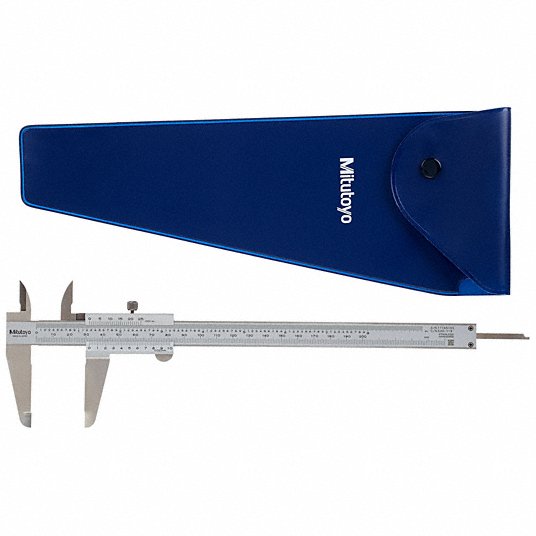

| Case Included | Yes |
| Case Type | Vinyl Holster with Fitted Carton |
| Finish | Satin Chrome |
| Jaw Shape | Standard Jaw |
| With Locking Nut | Yes |
| Weight | 0.24947560000000002 KG |
| Code | BD-4CGN7 |
| ID | 999874 |
