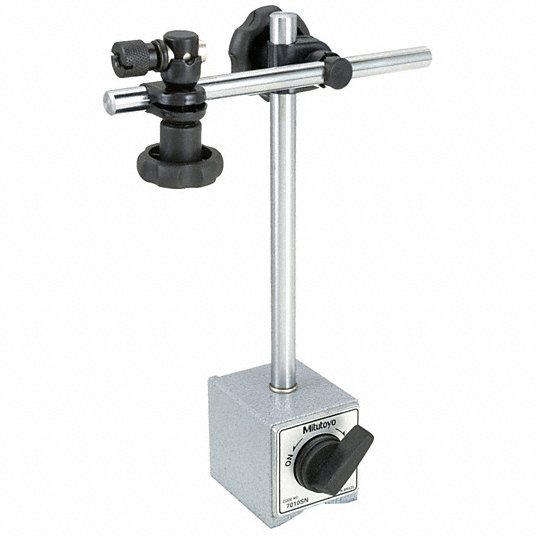

Magnetic-Base Indicator Holder, Base Type Magnetic, Arm Type Rigid, Holding Power 600 N 7010S
322
459
Indicator Holder
Split in 4 payments of 80.30
monthly without fees , learn more
Split it into 4 payments of 80.30
interest-free , learn more
Magnetic base indicator holders have a magnetic base that’s connected to an adjustable arm assembly used to mount and position indicators.
- Also called mag bases, they are always-on or have an on/off knob or button to mount to machines, motors, benches, or other metal surfaces.
| Arm Type | Rigid |
|---|---|
| Base Height | 60 mm |
| Base Length | 55 mm |
| Base Size | 55 mm L x 50 mm W x 60 mm H |
| Base Type | Magnetic |
| Base Width | 50 mm |
| Compatible Indicator Mounts | 3/8 in, 6 mm, 8 mm |
| Fine Adjustment Position | Fine Adjust Top (FAT) |
| Holding Power | 600 N |
| Maximum Reach | 232 mm |
| Step Type | V Step |
| Working Length of Post | Lower Arm / 55 mm |
| Working Length of Snug | Third Arm / 177 mm |
| Working Length of Upper Arm | 165 mm |
| Base Thread Size | M8 x 1.25 |
| Includes | 6 in Rod, Universal Clamp |
| Includes Snug | Yes |
| Magnet Type | On/Off Knob |
| Screw Type | Metal Knob |
| Centering Arm Shank Size | 10 in |
| Centering Arm Shank Type | Straight |
| Weight | 1.587572 KG |
| Code | BD-4LB12 |
| ID | 1000500 |
