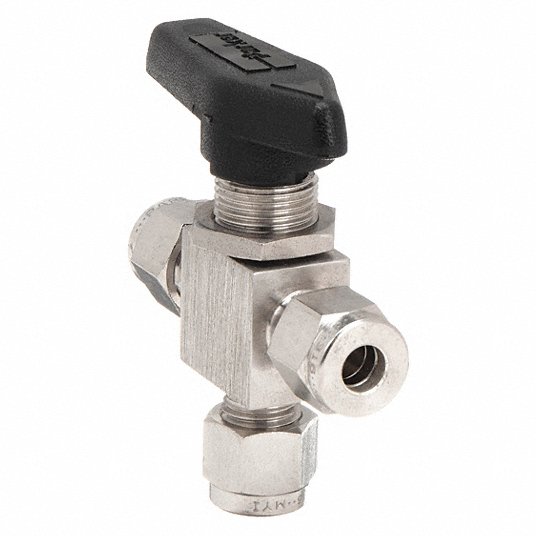

Parker Ball Valve, 316 Stainless Steel, 3-Way, 1-Piece, Pipe Size 3/8 in, Tube Size 3/8 in 6A-MB6XPFA-SSP
795
1,135
Ball Valve
Split in 4 payments of 198.53
monthly without fees , learn more
Split it into 4 payments of 198.53
interest-free , learn more
Instrumentation Ball Valves, MB Series
- Factory preset to 1000 psig Temp. range: -65° to 300°F
- Valves have a compact footprint and can be used for bidirectional flow; handle indicates flow direction. PFA seats and a 1-pc. packing provide a leaktight seal.
- Can be panel-mounted.
| Body Material | 316 Stainless Steel |
|---|---|
| Body Style | 3-Way |
| General Connection Type | Compression |
| Valve Structure | 1-Piece |
| Pipe Size | 3/8 in |
| Tube Size | 3/8 in |
| Connection Type | Comp. x Comp. x Comp. |
| Port | Standard |
| Max. Pressure | 3,000 psi CWP |
| Temp. Range | -65 Degrees to 300 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PFA |
| Stem Type | 1-Piece Stem/Ball |
| Handle Type | Lever |
| Handle Material | Nylon |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | A-Lok(R) Compression |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASTM A 276 Type 316 |
| Overall Length | 4.16 in |
| Weight | 0.23 KG |
| ID | 1519910 |
