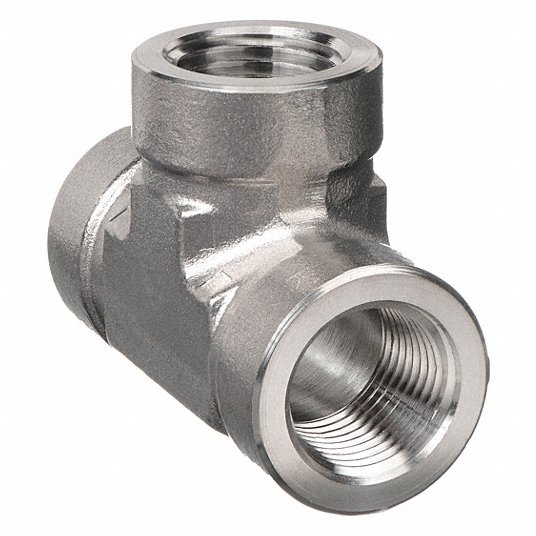

Grainger Approved Tee, 316 Stainless Steel, 3/4Inch x 3/4Inch x 3/4Inch Fitting Pipe Size, 2 11/16Inch Overall Lg 14M059
969
1,384
Tee
Temp. range: -425° to 1200°F
- Machined to an exceptional tolerance level with rolled threads for increased strength.
- 316 stainless steel has a higher nickel content, as well as molybdenum for better corrosion resistance. NPT connections.
- Use with water, steam, natural gas, hydraulic oil, and cryogenic gases.
| Pipe Fitting Material | 316 Stainless Steel, Stainless Steel |
|---|---|
| Material Grade | 316 |
| Fitting Side A Nominal Pipe Size | 3/4 in |
| Fitting Side A Gender | Female |
| Fitting Side A Type | NPT |
| Fitting Side B Nominal Pipe Size | 3/4 in |
| Fitting Side B Gender | Female |
| Fitting Side B Type | NPT |
| Fitting Side C Nominal Pipe Size | 3/4 in |
| Fitting Side C Gender | Female |
| Fitting Side C Type | NPT |
| Maximum Operating Pressure | 3,500 psi |
| Overall Length | 2 11/16 in |
| Hex Size | 1 5/16 in |
| Color | Silver |
| Application | Air, Natural Gas, Oil |
| Standards | ANSI B1.20.1, ANSI B31.1, ANSI B31.3 |
| Weight | 0.34 KG |
| ID | 1565424 |
