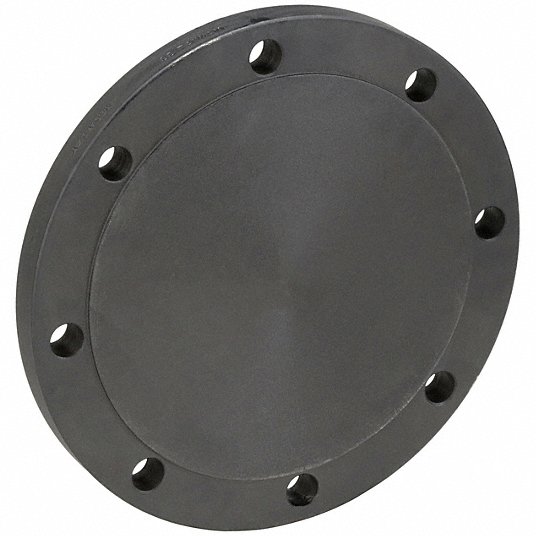

Grainger Approved Pipe Flange: Steel, Blind Flange, Anodized, 6 in Pipe Size, Raised Face Blind Flange, 11 in Outside Diameter , Class 150 4TXE8
240
343
Pipe Flange
Features
- Commonly used to blank off pipelines, valves, and pumps, or as an inspection cover, this GRAINGER APPROVED blind flange allows you to bolt 2 flanges together with a gasket to form a tight seal that still eases access to the piping system.
- This model is sometimes referred to as “blanking flange” and is for use with air, water, oil, natural gas, or steam.
| Specific Fitting Shape | Blind Flange |
|---|---|
| Connection Surface | Raised Face |
| Nominal Pipe Size | 6 in |
| Fitting Connection Type | Flanged x Blind |
| Flange Outside Diameter | 11 in |
| Flange Thickness | 15/16 in |
| Pipe Fitting Material | Steel |
| Finish | Coating / Anodized |
| Class | Class 150 |
| For Pipe Schedule | 40 |
| Maximum Operating Pressure | 150 psi |
| Temp. Range | -29 Degrees to 425 Degrees F |
| Number of Bolt Holes | 8 |
| Bolt Circle Diameter | 7/8 in |
| Bolt Hole Diameter | 3/4 in |
| Color | Black |
| Application | Air, Natural Gas, Non-Potable Water, Potable Water, Propane, Steam |
| Standards | ASME B16.3, ASME B16.4, ASTM A105, ASTM A197, ASTM A47, FM Approved, UL Listed |
| Weight | 11.3 KG |
| ID | 1802241 |
