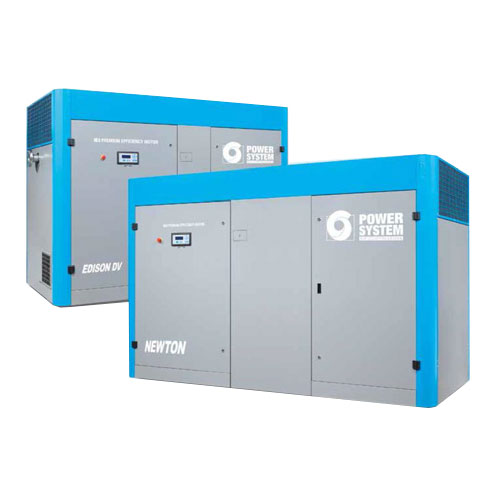

Power System SCREW COMPRESSOR, 75KW/100HP V60MB97PWS180
157,152
Screw Compressor
Features
- Since 1992 Power System has been an indisputable leader in the design, development, production and worldwide distribution of Rotary Screw Compressors and Professional Reciprocating Compressors in a power range from 0.55 to 315 kW satisfying air demands up to 50 m3/min., suitable for any technology sector, from the largest industry to the smallest enterprise.
- Power System has, since the very beginning, been engaged in a Research mission aimed to create advanced solutions to compress air with the lowest possible energy consumption.
- EDISON DV Variable speed direct driven lubricated rotary screw compressors, high performance energy saving Solutions.
- VARIABLE SPEED DRIVE.
- INVERTER.
- COMPRESSOR AIR END.
- MAIN ELECTRIC MOTOR.
- DIRECT DRIVE TRANSMISSION.
- ENERGY CONSERVATION.
- ADVA NCED COOLING SYSTEM.
- INTELLIGENT CONTROLLERS.
SPEED / VARIABLE
MODE / DIRECT DRIVEN
VOLTAGE / 380
Max Pressure / Par Max/ 10 Psing Max/145
F.A.D. m3/min / 2.00- 10.60 CFM: 70.6 – 374.30
Power kW-HP / 75-100
Noise level dB(A) / 74 ± 3
| Weight | 1650 KG |
|---|---|
| ID | 2188261 |
