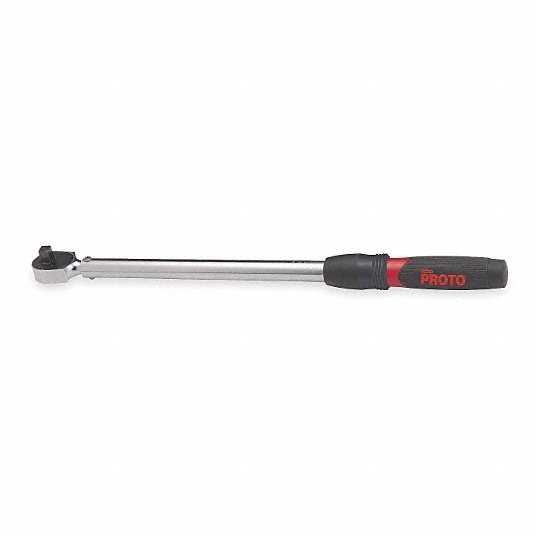

Proto Micrometer Torque Wrench, Drive Size 1/2 in 426F14
1,420
Torque Wrench
Ratcheting noninsulated micrometer torque wrenches have a gear mechanism on the head that allows the wrench to rotate freely in one direction without removing the wrench head from the fastener and repositioning the wrench.
- They have a fixed, non-flex head with ratcheting action that allows torque to be applied to fasteners in tight spaces.
| Drive Size | 1/2 in |
|---|---|
| Torque Range | 33.2 ft-lb to 151.2 ft-lb, 40 N-m to 200 N-m |
| Torque Increments | 1 ft-lb, 1 N-m |
| Primary Scale Minimum Torque | 30 ft-lb |
| Primary Scale Maximum Torque | 148 ft-lb |
| Secondary Scale Minimum Torque | 33 ft-lb |
| Secondary Scale Maximum Torque | 151 ft-lb |
| Ratcheting | Yes |
| Rotation | Clockwise and Counterclockwise |
| Torque Adjustability | Adjustable |
| Clockwise Accuracy | +/- 4% |
| Counterclockwise Accuracy | +/- 6% |
| Corrosion Resistant | Yes |
| Torque Limiting Mechanism | Click-Type |
| Torque Setting | Adjustable |
| Visual | Audible Indicators / Audible Click |
| Finish | Chrome |
| Material | Alloy Steel |
| Handle Type | Knurled |
| Handle Material | Alloy Steel |
| Handle Color | Silver |
| Dual Scale | Yes |
| Min. Arc Swing | 15 Degrees |
| Min. Number of Cycles | 5,000 |
| Number of Geared Teeth | 24 |
| Overall Length | 20 1/4 in |
| Overall Width | 1 3/4 in |
| Includes | (1) Case |
| Standards | ASME B107.300-2010 |
| Weight | 5 lb |
| Head Movement | Ratcheting |
| Weight | 2.26 KG |
| Code | BD-BJB-J6016NMC |
| ID | 1020106 |
