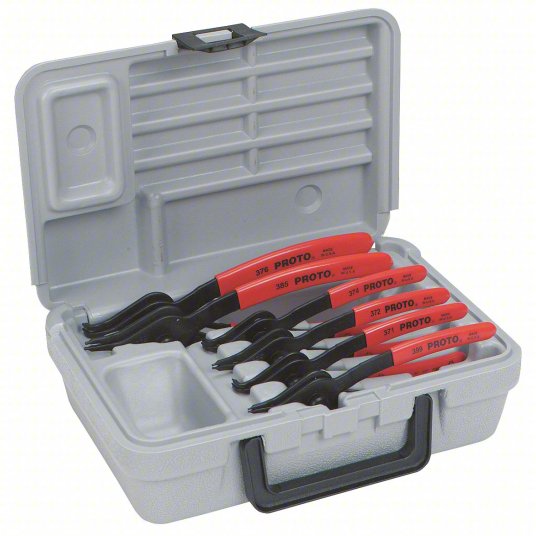

Proto Retaining Ring Plier Set, Internal/External, For 3/8 inch to 3-inch Bore Dia, 0°_90° Tip Angle J360A
282
403
Retaining Ring Plier Set
- Convenient blow-molded carrying case includes storage for space rings
- Ideal for automotive repair and machinery where metric threads are specified
Split in 4 payments of 70.44
monthly without fees , learn more
Split it into 4 payments of 70.44
interest-free , learn more
Proto Retaining Ring Plier Set J360A
These sets consist of several pairs of convertible retaining-ring pliers that come in different lengths and tip sizes. Convertible retaining-ring pliers can switch their jaw motion or orientation to accommodate internal snap rings for bores and external snap rings for shafts. They eliminate the need for separate pairs of internal and external pliers. Their tips slide into matching grip holes in a ring's lugs (ears) to provide a secure hold when squeezing together or pulling apart the ends of the ring.
| Overall Length | 5-3/4 inch; 5-7/8 inch; 7-1/8 inch; 7-1/2 inch |
|---|---|
| For Bore Diameter | 3/8 inch to 3 inch |
| Tip Diameter | 0.038 inch, 0.047 inch, 0.07 inch |
| Tip Angle | 0 °, 90 ° |
| For Shaft Diameter | 1/4 inch to 2 inch |
| Grip Style | Standard Cushion |
| Non-Sparking | No |
| For Ring Type | Internal/External |
| Number of Pliers | 6 |
| Jaw Opening Type | Manual |
| Handle Color | Red |
| Handle Style | Cushion Grip |
| Includes | Carrying Case |
| Plier Material | Steel |
| Plier Types | Retaining Ring Pliers |
| Standards | ANSI B107.19; Federal Specification GGG-P-480 |
| Steel Type | Alloy Steel |
| Tip Adjustment | No |
| Weight | 0.997 KG |
| ID | 1032020 |
