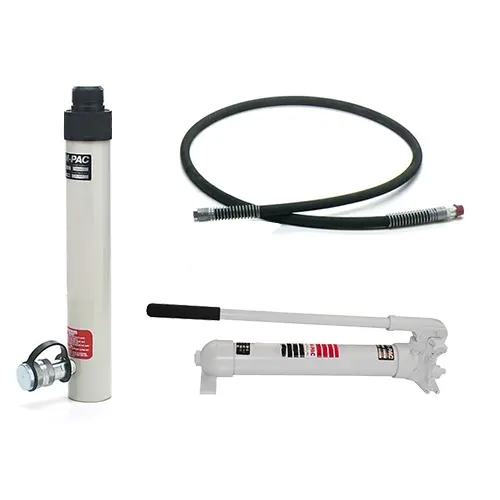

Ram-Pac hydraulic hand pump, 25 ton RC-25-SA-6, HP-50
2,675
3,821
HYDRAULIC HAND PUMP
Split in 4 payments of 668.54
monthly without fees , learn more
Split it into 4 payments of 668.54
interest-free , learn more
Features
- Solid bronze glands and wear ring for long life.
- Male NPT threads on the rod end and female NPT in base.
- Chrome-plated piston rods resist corrosion and wear.
- Quick-connect coupling for fast setup.
| Cylinder Cap. (Tons) | 25 |
|---|---|
| Stroke (In) "D" | 6 1/4 |
| Model Number | RC-25-SA-6 |
| Closed Height "C" | 10 3/4 |
| Ext. Height (In) | 17 |
| Eff. Area (Square Inch) | 4.90 |
| Oil Capacity (Cubic Inch) | 30.6 |
| Outside Diameter "A" | 3 3/8 |
| Rod Diameter "B" | 2 1/4 |
| Bottom to Port Diameter "E" | 1 |
| Plunger Thread | 1 1/2-16 x 9/16 |
| Collar Thread "F" | 3 5/16-12 x 2 |
| Mounting Holes "G" | (2) 1/2-13, 2 5/16 Dia.B.C. HP-50 |
| Oil Capacity (Cubic Inch) | 37 |
| Type of Cylinder | Single Acting |
| Handle Length (In) | 22 |
| Length (in) | 19 3/4 |
| Width (in) | 5 |
| Height (in) | 5 1/2 |
| Weight (lb) | 16 |
| Rated Pressure 1st Stage (psi) | N/A |
| Rated Pressure 2nd Stage (psi) | 10,000 |
| Oil Displacement per Stroke 1st Stage (Cubic Inch) | N/A |
| Oil Displacement per Stroke 2n Stage (Cubic Inch) | .19 |
| Weight | 24 KG |
| ID | 955067 |
