-30%

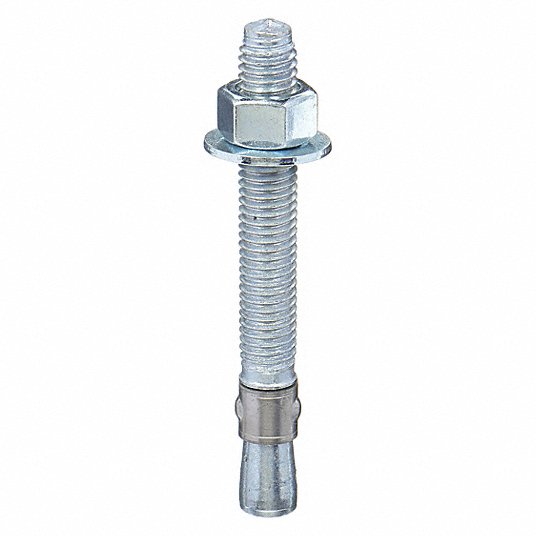

Red Head Steel Expansion Wedge Anchor, 2 3/4 in, 1/2 in Anchor Dia., Zinc Plated, 25PK WS-1226
79
113
Wedge Anchor
Split in 4 payments of 19.72
monthly without fees , learn more
Split it into 4 payments of 19.72
interest-free , learn more
These expansion wedge anchors are designed for use in concrete, and for increased loads.
- They feature carbon steel construction.
- Nuts and washers are included.
| Wedge Anchor Type | Expansion Wedge Anchor |
|---|---|
| Anchor Material | Steel |
| Material Grade | Not Graded |
| Fastener Finish | Zinc Plated |
| Anchor Dia. | 1/2 in |
| Anchor Length | 2 3/4 in |
| Max. Work Thickness | 1/8 in |
| Thread Length | 1 1/4 in |
| Thread Size | 1/2"-13 |
| ICC Approved for Un-Cracked Concrete | Yes |
| Min. Embedment | 2 1/4 in |
| Thread | Fully Threaded |
| Embedment In Concrete | 2 1/4 in |
| Ultimate Pullout (Lb.) | 5,100 |
| Ultimate Shear (Lb.) | 4,760 |
| Ultimate Shear in 4000 PSI Concrete (Lb.) | 4,760 |
| Ultimate Tension in 4000 PSI Concrete (Lb.) | 5,100 |
| Agency Compliance | UL |
| Meets | Exceeds / A-A-1923A Type 4 |
| Includes | Nuts and Washers |
| Weight | 2.0865232 KG |
| ID | 1386883 |
