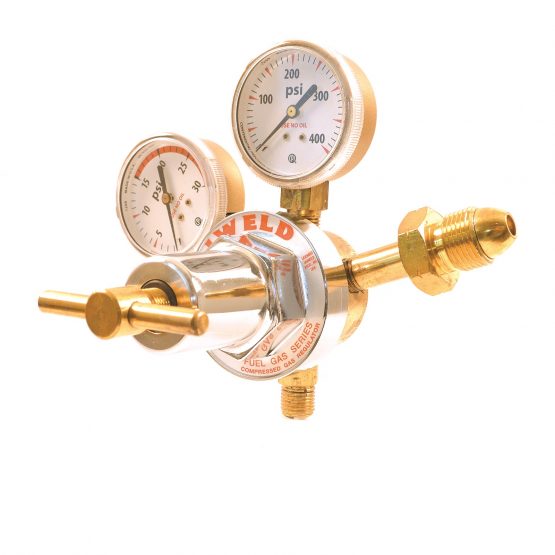

Uniweld REGULATOR RUH8211
164
REGULATOR
RUH82 SERIES MEDIUAM / HAVY DUTY
- Machined brass body
- Polished chrome bonnet
- Easy-to-read single scale 2" gauges
- 2" tri-layered reinforced neoprene diaphragm
- Heavy duty mechanical stem type seat and nozzle assembly
- Delrin bushing for smooth flow adjustment
- Porous metal inlet filter (except C02 models)
- Fine mesh filter screen between inlet and seat
- Pressure relief device for low pressure gauge protection only
| CGA | OXYGEN |
|---|---|
| INLET | 510 |
| OUTLET | “B” (RH) |
| CONNECTION | 9/16"-18(M) |
| DEL. PSIG | 2-15 |
| REPLACEMENT | G2S; 30 PSI (RL) |
| 2" GAUGES | G1S; 400 PSI |
| IMENSIONS | Depth: 51/ 2" |
| Width: 7" | |
| Height: 51/ 2" | |
| Weight: 3 lbs | |
| Weight | 2 KG |
| ID | 2185754 |
